Home Fasteners IFI 100/107 Top Locknut Grade C 1/2-13
Fasteners

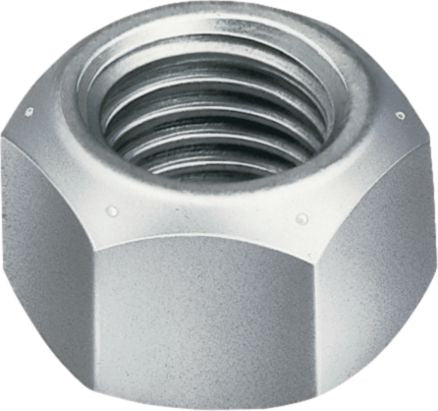

IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread, 0.573" Thickness, 3/4" Across Flats, 1/2-13
(Pack of 50)

Item#: 80931

Tuff-Torq®

• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 3-12, 3-29

Frequently Bought Together


Lock Washer Alloy Steel 3/8"

Item#: A530

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

IFI 100/107 Top Locknut Grade C 7/16-14

Item#: 80930

SAE J995C Locknut with Nylon Insert Grade 8 5/8-18

Item#: 53995

DIN 980V Top Locknut Grade 10 M6-1

Item#: 87498

IFI 100/107 Top Locknut Grade C 3/8-16

Item#: 80929

Hex Nut Grade 8 Alloy Steel 3/4-10

Item#: A107

SAE J995C Locknut with Nylon Insert Grade A 3/8-16

Item#: 303

Hex Nut Grade 8 Steel 5/16-18

Item#: FA68401

Self-Drilling Screw Hex Head 1/4-14 x 3/4"

Item#: 2538

Hex Nut Grade 5 Steel 5/8-11

Item#: FA95683

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

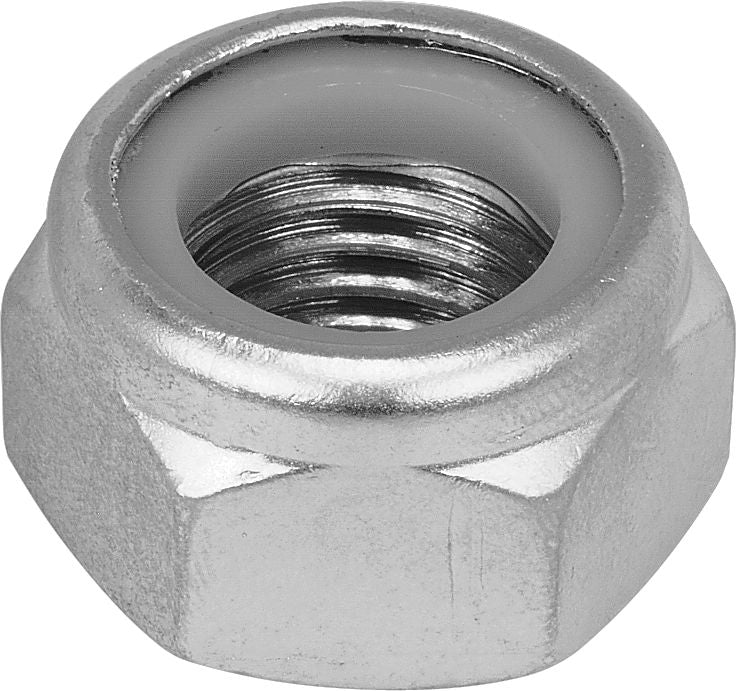

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

6310 XL Adjustable Ice Traction Device

Item#: 1285261

6310 L Adjustable Ice Traction Device

Item#: 1285869

6310 M Adjustable Ice Traction Device

Item#: 1285373

Product Description

• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.

Technical Specifications

Item#: 80931
Diameter 1/2 "
Thread Pitch 13
Grade C
Finish Zinc/Wax
Type Top Lock Nut
Material Alloy Steel
Thickness 0.573 "
Across Flats 3/4 "
Thread Coarse
Specifications IFI 100/107
Maximum Temperature 450º F
Proof 150,000 PSI
Quantity Per Package 50.0000
UNSPSC #: 31161716
TAA Compliant: No
Weight: 1.71 lb
