In-Wall Carrier Fits for 2 x 4 in., Steel, Wall/Floor Mount, Green
(Pack of
1)
SKU:1648114 Item#: 1648114

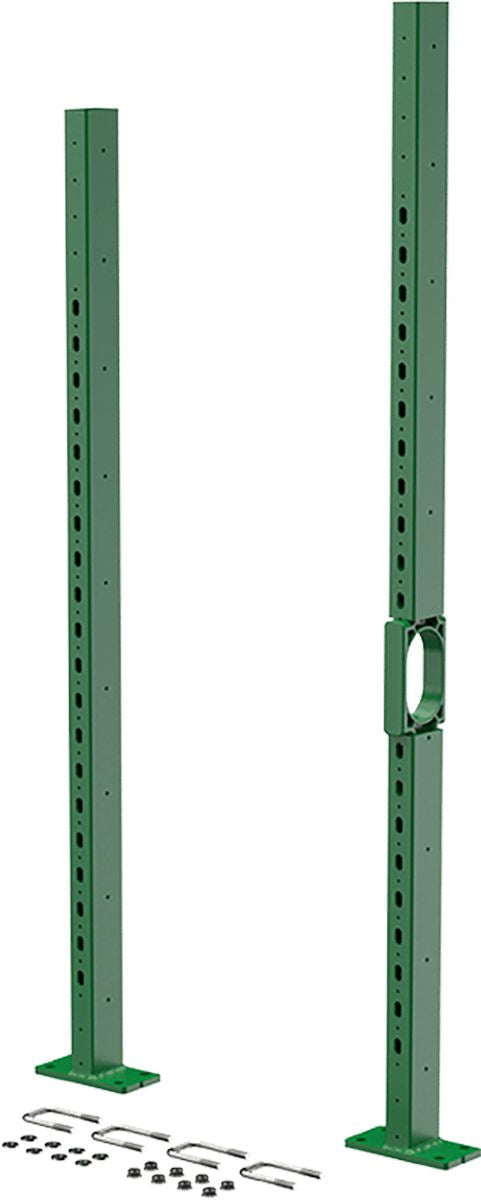

In-wall floor mounted fixture carrier: Two 2½” x 1½” x 1/8” thick structural steel uprights having 6” x 3" x 3/8” thick welded steel 4-bolt floor flanges, supplied with ‘U’ bolts and hardware. For use in conjunction with Haws in-wall mounting plates 6700, 6700.4, 6710, 6715, 6717, or 6776, for extra heavy duty fixture support. Fits inside standard 2” x 4” wall construction. Suitable for use with either 3/8" or 1/2" concrete anchors (by others). Includes mounting holes for plumbing stub out bracket and electrical boxes, and a on-site custom-fit side drain port. This port can be placed at any height. Exceeds requirements when tested in accordance to ASME Standard A112.6.1M. Design was independently verified as suitable to meet HCAI and CBC anchor spacing requirements.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Wypall L30 Wiper 16.4 x 9.8"
Couldn't load pickup availability
Ear Plug Dispenser
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 13.4"
Couldn't load pickup availability
Wall Mount Hi-Lo ADA Motion Activated Water Cooler and Bottle Filler
Couldn't load pickup availability
Skirt Lower for Dual Haws Water Cooler
Couldn't load pickup availability
Side Drain Port for 6800
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 16.8"
Couldn't load pickup availability
TigerGrip 8 Mil Nitrile Glove Orange Large
Couldn't load pickup availability
Premium Nitrile Gloves, Orange, 6 Mil, X-Large, 100/Box
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Bullseye #12 Bottle with Trigger Sprayer 22fl.oz
Couldn't load pickup availability
Reclaimed Mixed Color T-Shirt Rags
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Orange
Couldn't load pickup availability
Product Description
In-wall floor mounted fixture carrier: Two 2½” x 1½” x 1/8” thick structural steel uprights having 6” x 3" x 3/8” thick welded steel 4-bolt floor flanges, supplied with ‘U’ bolts and hardware. For use in conjunction with Haws in-wall mounting plates 6700, 6700.4, 6710, 6715, 6717, or 6776, for extra heavy duty fixture support. Fits inside standard 2” x 4” wall construction. Suitable for use with either 3/8" or 1/2" concrete anchors (by others). Includes mounting holes for plumbing stub out bracket and electrical boxes, and a on-site custom-fit side drain port. This port can be placed at any height. Exceeds requirements when tested in accordance to ASME Standard A112.6.1M. Design was independently verified as suitable to meet HCAI and CBC anchor spacing requirements.Technical Specifications
| Item#: | 1648114 |
|---|---|
| Manufacturer Model #: | 6810 |
| Style | In-Wall Carrier |
| Mounting Type | Wall, Floor |
| Material | Steel |
| Standards | ASME, A112.6.1M |
| Color | Green |
| Description | In-Wall Carrier |
| Type | In-Wall Carrier |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 39111503 |
| TAA Compliant: | Yes |
