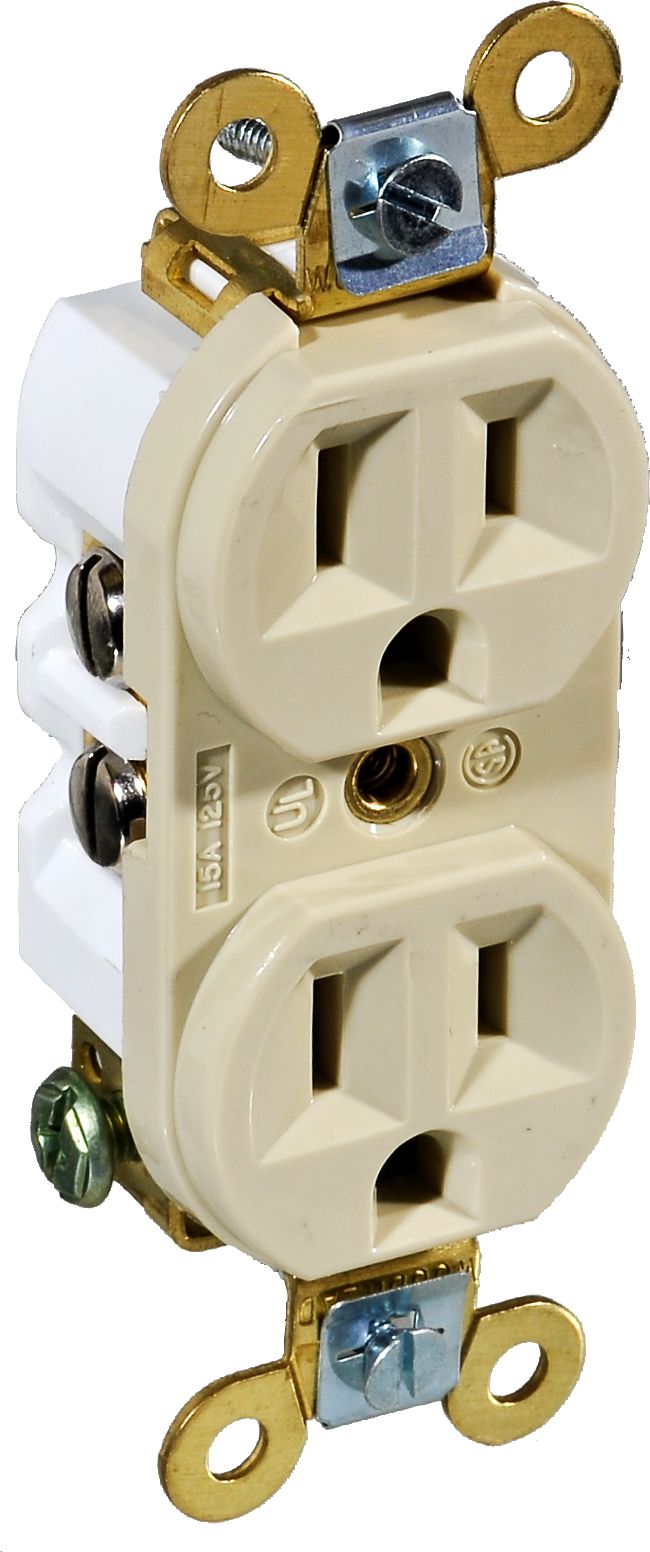

Industrial Duty Duplex Receptacle 15A 125V Ivory
(Pack of
1.0)
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-89
Frequently Bought Together
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Industrial Duty Plug 15A 125V
Couldn't load pickup availability
Industrial Duty Connector 15A 125V
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Industrial Duty Plug 15A 125V
Couldn't load pickup availability
Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Red LED Round, On-Off
Couldn't load pickup availability
Industrial Duty Connector 15A 125V
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 87229 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-15R |
| Color | Ivory |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
