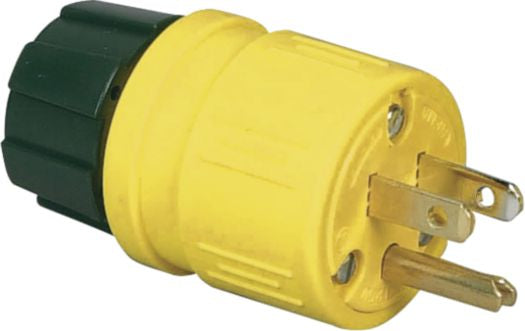

Industrial Duty SAF-T Connect Plug, 15 Amps, 125 Volts, Yellow, 0.33 to 0.64" Cord Diameter, NEMA 5-15P
(Pack of
6)
SKU:P52076 Item#: P52076
• High-quality plugs and connectors resist high impact, crushing and repeated connects and disconnects
• Durable outer rubber casing absorbs shock
• Hard nylon inner body helps protect connections
• Reversible jacket allows for splash-resistant connections
• Internal and external cord clamps help seal out moisture
• Dead-front design – no wire clamping screws are exposed on the front of the plug or connector
• Back-wired design – each wire has its own wiring chamber to keep it isolated from the others
• Transparent backplate allows for visual inspection of the connections
• All parts are keyed for quick and easy assembly
• NEMA standard blade patterns can be used with existing receptacles
• Outer casing is colored OSHA Yellow for visibility
• Four color-coded bushings for use with multiple cord sizes – 18/3 to 10/3
• Interchangeable male and female casings
• For use on cord diameters 0.330" to 0.640"
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 17-93
Frequently Bought Together
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Locking Connector
Couldn't load pickup availability
Thermoplastic Boot
Couldn't load pickup availability
Watertight Plug
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Rocker Switch SPDT 25A 12VDC On-Red/Off/On-Red
Couldn't load pickup availability
Universal Toggle Switch DPDT 15A 125V On-Off-On
Couldn't load pickup availability
Product Description
• High-quality plugs and connectors resist high impact, crushing and repeated connects and disconnects• Durable outer rubber casing absorbs shock
• Hard nylon inner body helps protect connections
• Reversible jacket allows for splash-resistant connections
• Internal and external cord clamps help seal out moisture
• Dead-front design – no wire clamping screws are exposed on the front of the plug or connector
• Back-wired design – each wire has its own wiring chamber to keep it isolated from the others
• Transparent backplate allows for visual inspection of the connections
• All parts are keyed for quick and easy assembly
• NEMA standard blade patterns can be used with existing receptacles
• Outer casing is colored OSHA Yellow for visibility
• Four color-coded bushings for use with multiple cord sizes – 18/3 to 10/3
• Interchangeable male and female casings
• For use on cord diameters 0.330" to 0.640"
Technical Specifications
| Item#: | P52076 |
|---|---|
| Style | Saf-T-Connect Plugs and Connectors |
| Volts | 125 |
| Description | Plug |
| NEMA Configuration | 5-15P |
| Cord Diameter | 0.330 - 0.640 " |
| Color | Yellow |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 1.46 lb |
