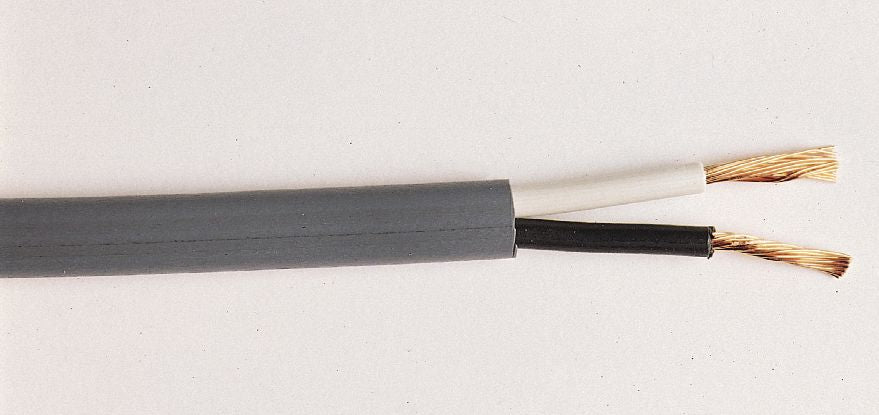

Jacketed Parallel Primary Wire, 14 AWG, 2 Conductor, 100' Length, 60 Volts, White, Black, PVC Insulation
(Pack of
1)
SKU:5564R Item#: 5564R
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 212°F (100°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-5
Frequently Bought Together
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Plastic Covered Primary Wire 20 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Green
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 4C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 3C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 4C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 4C 100'
Couldn't load pickup availability
Battery Terminal 1/0 AWG Straight Barrel Positive
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Brown
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Brown
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 212°F (100°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 5564R |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 14 AWG |
| Color | White, Black |
| Number of Conductors | 2 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 212 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | No |
| Weight: | 4.77 lb |
