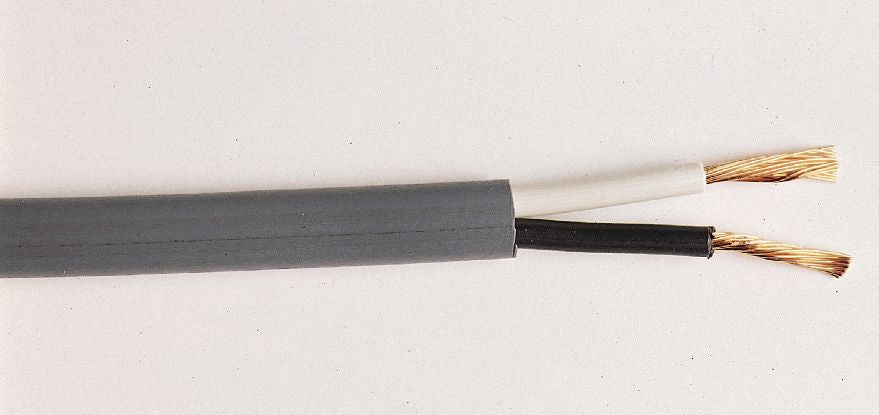

Jacketed Parallel Primary Wire, 16 AWG, 2 Conductor, 100' Length, 60 Volts, White, Black, PVC Insulation
(Pack of
1)
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-5
Frequently Bought Together
ATO/ATC Fuse 20A Yellow
Couldn't load pickup availability
Extension Cord Tri-Tap Adapter 15A 125V
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Green
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Blue
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Green
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 3C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 3C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 4C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 3C 100'
Couldn't load pickup availability
Plastic Covered Primary Wire 20 AWG 100' Black
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 221°F (105°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 5563E |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 16 AWG |
| Color | White, Black |
| Number of Conductors | 2 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 221 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 3.65 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
