Home Hydraulics Hydraulic End Fittings KH Series Crimp-On Elbow 90° 3/8" x M18-1.5
End Fittings

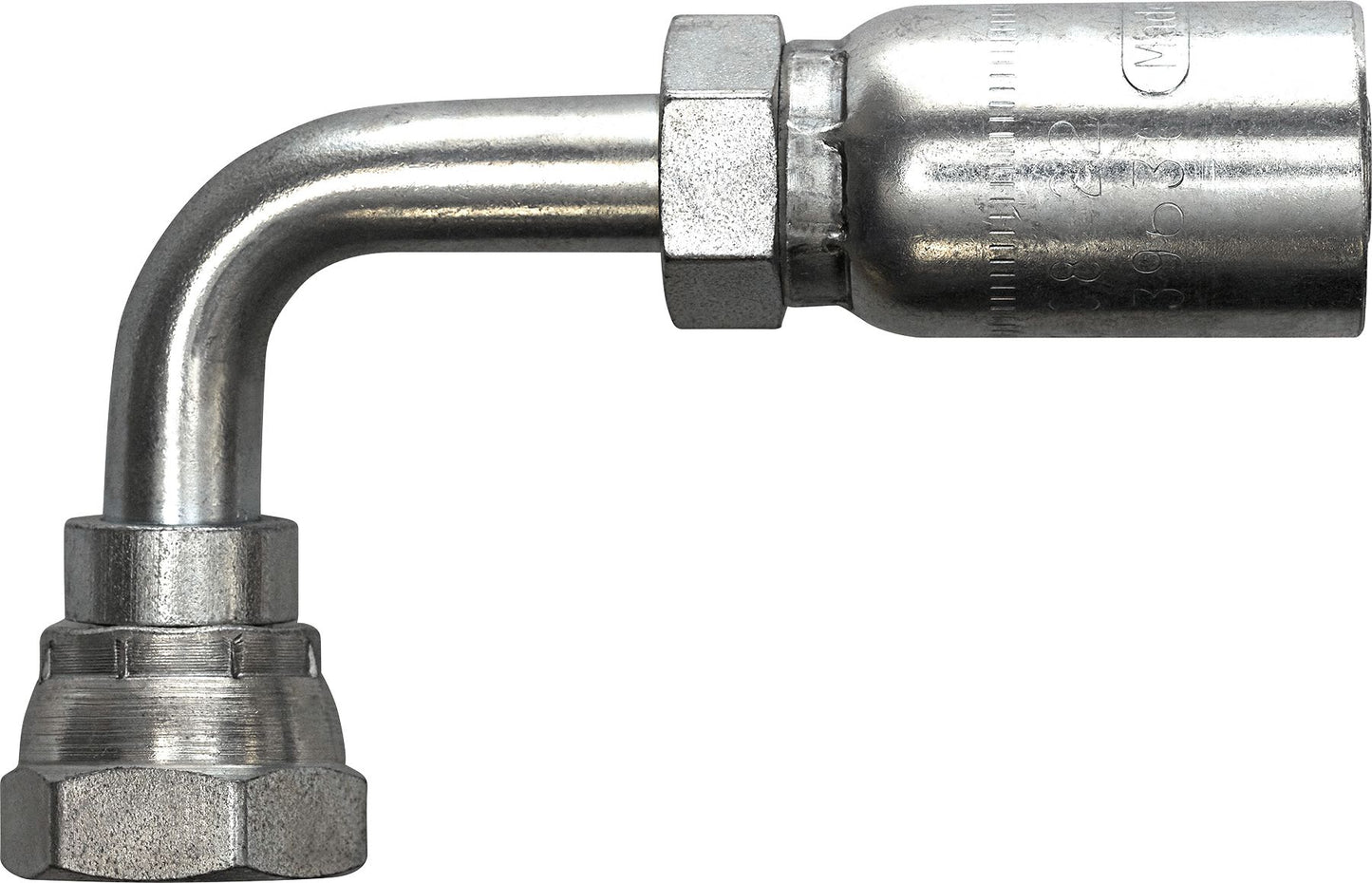

KH Series Crimp-On Elbow, Steel, Female DIN Universal Seat, Light Pattern, 90°, 3/8" (-6) x M18-1.5
(Pack of 2)

Item#: 22957KH

KURT Hydraulics

These fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-58

Frequently Bought Together


Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12

Item#: 62893

Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare

Item#: 86154

MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare

Item#: 86201

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Product Description

These fittings are designed to be crimped with Kurt 100R2S and 100R16S hoses

Technical Specifications

Item#: 22957KH
Manufacturer Model #: F-DINLX90-06-18
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/8 (-6) "
Dash Size -6
Gender Female
Fitting End Style DIN Universal Seat - Light Pattern
Fitting End Type Swivel
Fitting Angle 90 °
Fitting Dimension B (Working End) M18 x 1.5
O.D. Tube Size 12
Size (-6)XM18x1.5
Hex Size 7/8 "
Material Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.56 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
