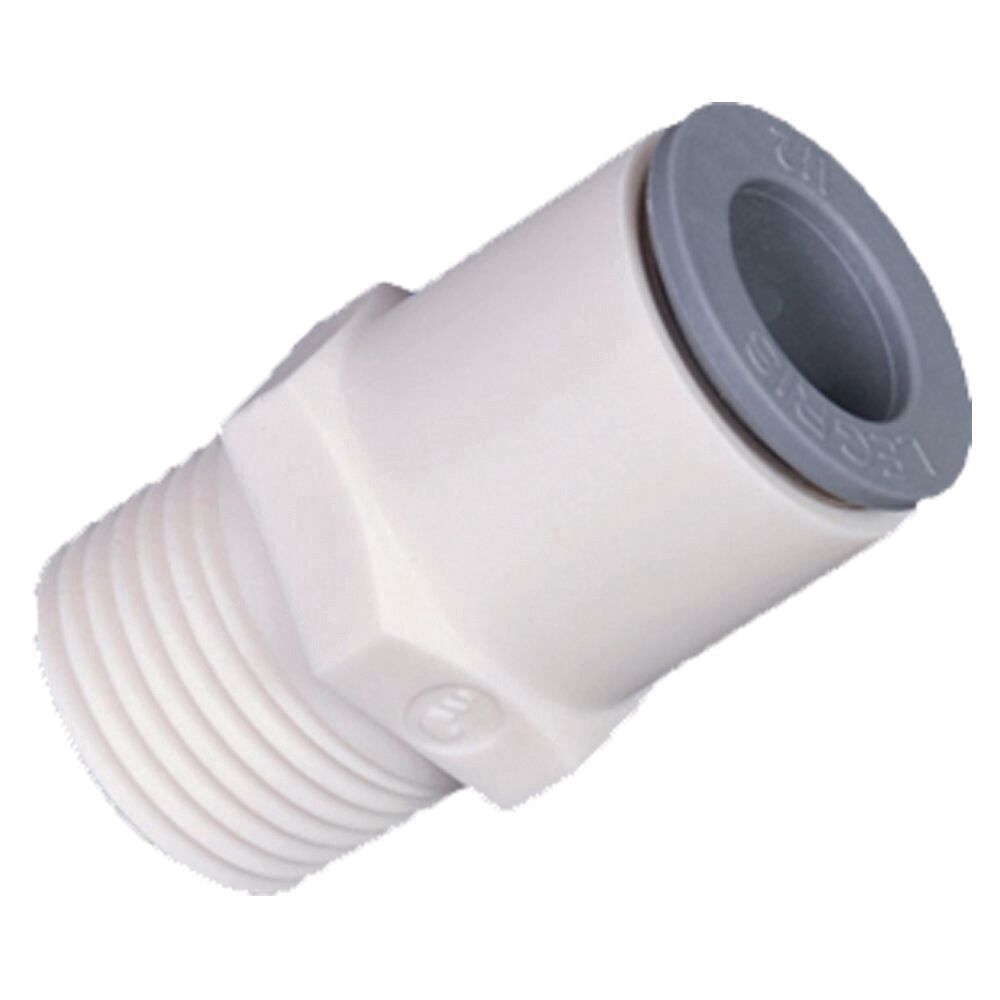

LIQUIfit Male Connector, 3/8" Tube, 1/4" NPTF
(Pack of
10.0)
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Bushing Steel 3/4-14 x 1/2-14
Couldn't load pickup availability
Merchant Coupling Steel 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Nipple Steel Black 3/8-18 x 3/8-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hex Bushing Steel 1/2-14 x 3/8-18
Couldn't load pickup availability
1025U08 04
Couldn't load pickup availability
1100P08 00
Couldn't load pickup availability
1094U04 04
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Technical Specifications
| Item#: | 1593571 |
|---|---|
| Style | LIQUIfit |
| Configuration | Male Connector |
| Tube Size | 3/8 " |
| Thread Size | 1/4 " |
| Thread Style | NPTF |
| Material | Engineered Polymer |
| Wrench Size | 3/4 " |
| Internal Hex Size | 1/4 " |
| Working Pressure | 230 PSI |
| Temperature Range | +35 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.125 lb |
