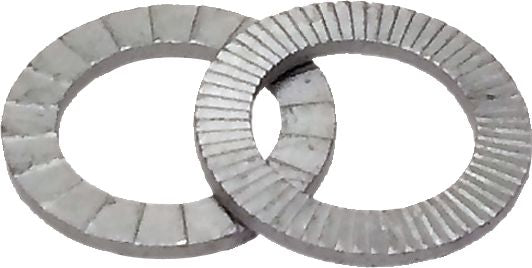

Lock Washer, Self-Locking, Steel, Delta Protekt Finish, 0.79" ID, 1.21" OD, 0.13" Thickness, 3/4"
(Pack of
10)
• Resists loosening caused by vibration
• Ease of assembly and disassembly
• Locking function not affected by lubrication
• Positive locking – low or high preload levels
• Minimum surface marring or scratching
• Zinc flake coated with Delta Protekt® for superior corrosion resistance – up to 6 times longer than standard zinc plating
• Thru-hardened: Minimum 44 HRC, Maximum 51 HRC
Available in either a Standard O.D. or a Large O.D. series. The Standard O.D. series is designed for counter-bore holes according to DIN 974. The Large O.D. series washers are designed for use on large/slotted holes, painted/sensitive surfaces or soft materials. They can also for use with flanged bolts or nuts for optimum load distribution.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 3-35
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Lock Washer Alloy Steel 1/2"
Couldn't load pickup availability
Lock Washer Alloy Steel 5/16"
Couldn't load pickup availability
Lock Washer Alloy Steel 1/4"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Resists loosening caused by vibration• Ease of assembly and disassembly
• Locking function not affected by lubrication
• Positive locking – low or high preload levels
• Minimum surface marring or scratching
• Zinc flake coated with Delta Protekt® for superior corrosion resistance – up to 6 times longer than standard zinc plating
• Thru-hardened: Minimum 44 HRC, Maximum 51 HRC
Available in either a Standard O.D. or a Large O.D. series. The Standard O.D. series is designed for counter-bore holes according to DIN 974. The Large O.D. series washers are designed for use on large/slotted holes, painted/sensitive surfaces or soft materials. They can also for use with flanged bolts or nuts for optimum load distribution.
Technical Specifications
| Item#: | 58099 |
|---|---|
| Nominal Size | 3/4 " |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.79 " |
| O.D. | 1.21 " |
| Finish | Delta Protekt® |
| Thickness | 0.13 " |
| UNSPSC #: | 31161801 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
