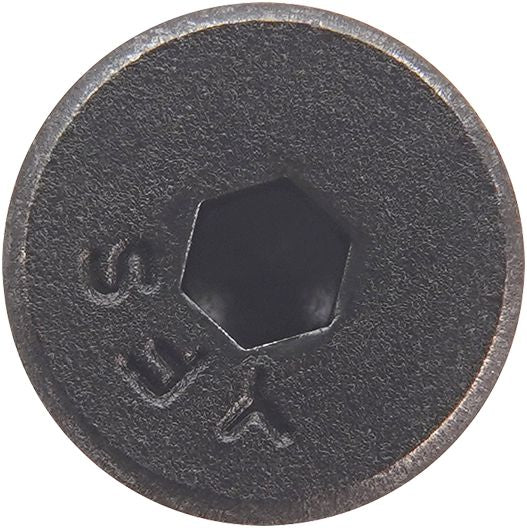

Low Head Socket Cap Screw, Alloy Steel, Black Oxide Finish, Coarse Thread, 3/32" Hex Key, #10-24 x 3/8"
(Pack of
50)
SKU:56404 Item#: 56404
• Conforms to ANSI Specification B18.3• 170,000 PSI minimum tensile strength• 150,000 PSI minimum yield strength
• Precision fasteners designed for applications where head height clearance is a problem
Couldn't load pickup availability
Catalog page#: 4-12
Frequently Bought Together
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
Low Head Socket Cap Screw Steel M6-1 x 45mm
Couldn't load pickup availability
Low Head Socket Cap Screw SS M6-1 x 35mm
Couldn't load pickup availability
Low Head Socket Cap Screw SS M5-0.8 x 16mm
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 5/16-18 x 3/4"
Couldn't load pickup availability
Flat Head Socket Cap Screw SS M6-1 x 20mm
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel M8-1.25 x 50mm
Couldn't load pickup availability
Product Description
• Conforms to ANSI Specification B18.3• 170,000 PSI minimum tensile strength• 150,000 PSI minimum yield strength• Precision fasteners designed for applications where head height clearance is a problem
Technical Specifications
| Item#: | 56404 |
|---|---|
| Diameter | #10 |
| Head Height | 0.095 " |
| Thread Pitch | 24 |
| Length | 3/8 " |
| Head Style | Low Head |
| Finish | Black Oxide |
| Material | Alloy Steel |
| Thread | Coarse |
| Tensile Strength | 170,000 PSI |
| Key Size | 3/32 " |
| Drive | Hex |
| Type | Low Head Socket Cap Screw |
| Size | 10-24X3/8 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
