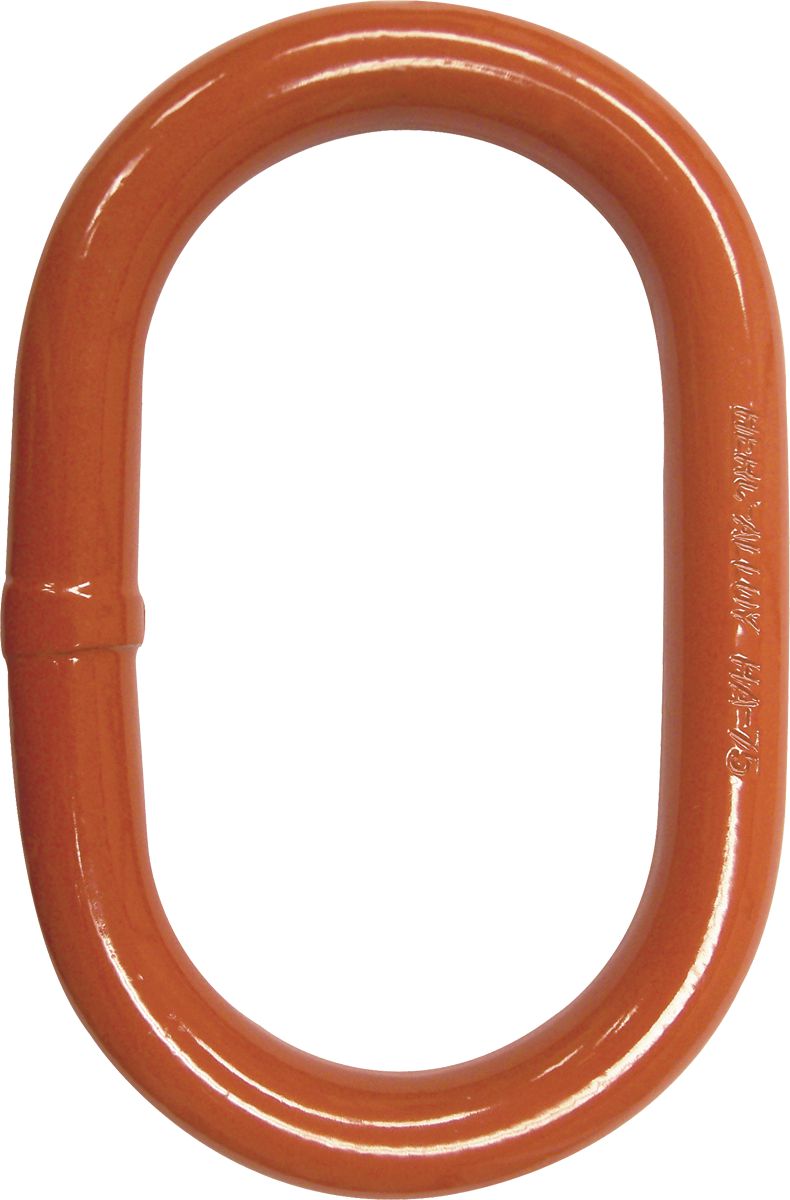

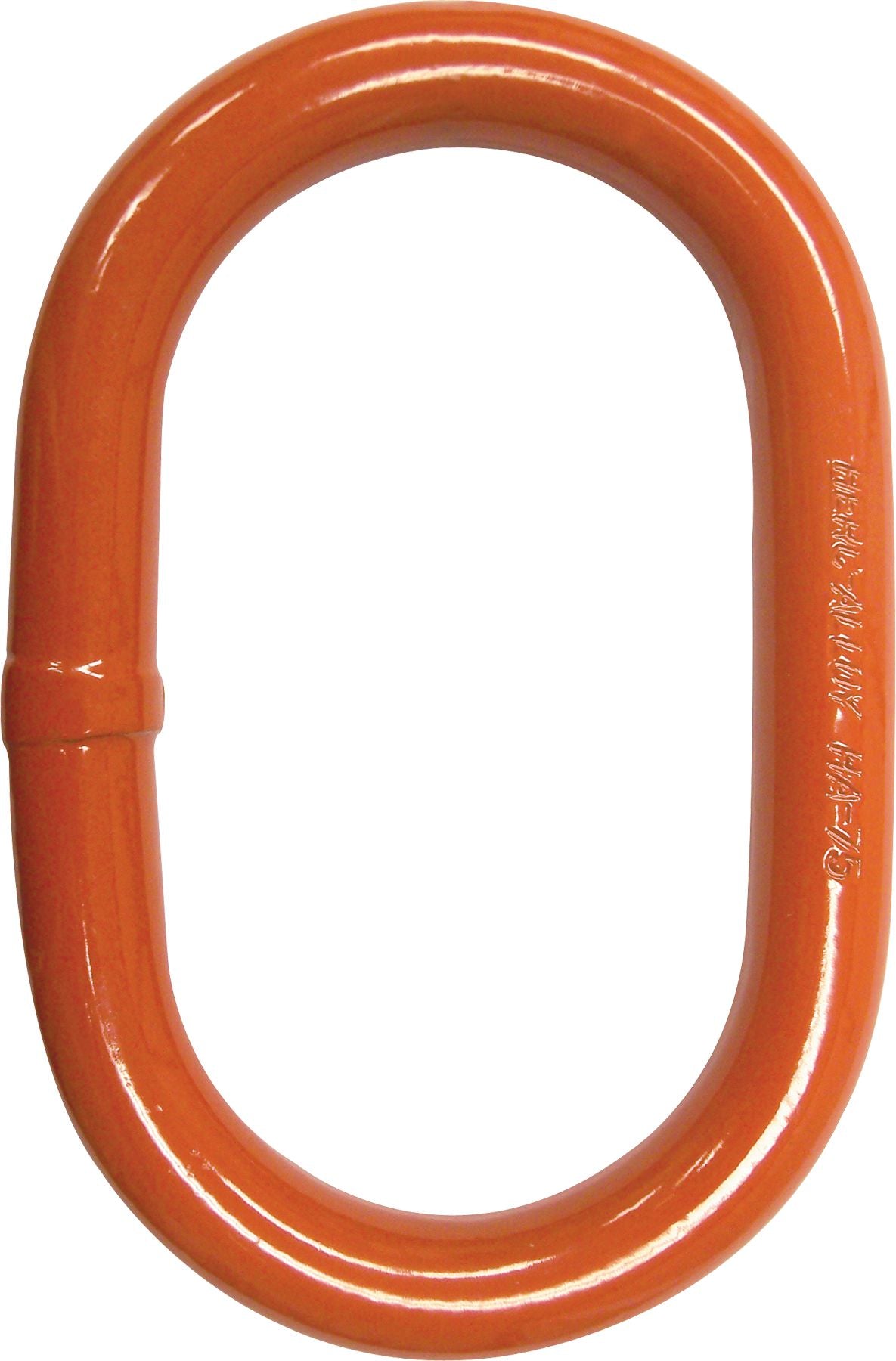

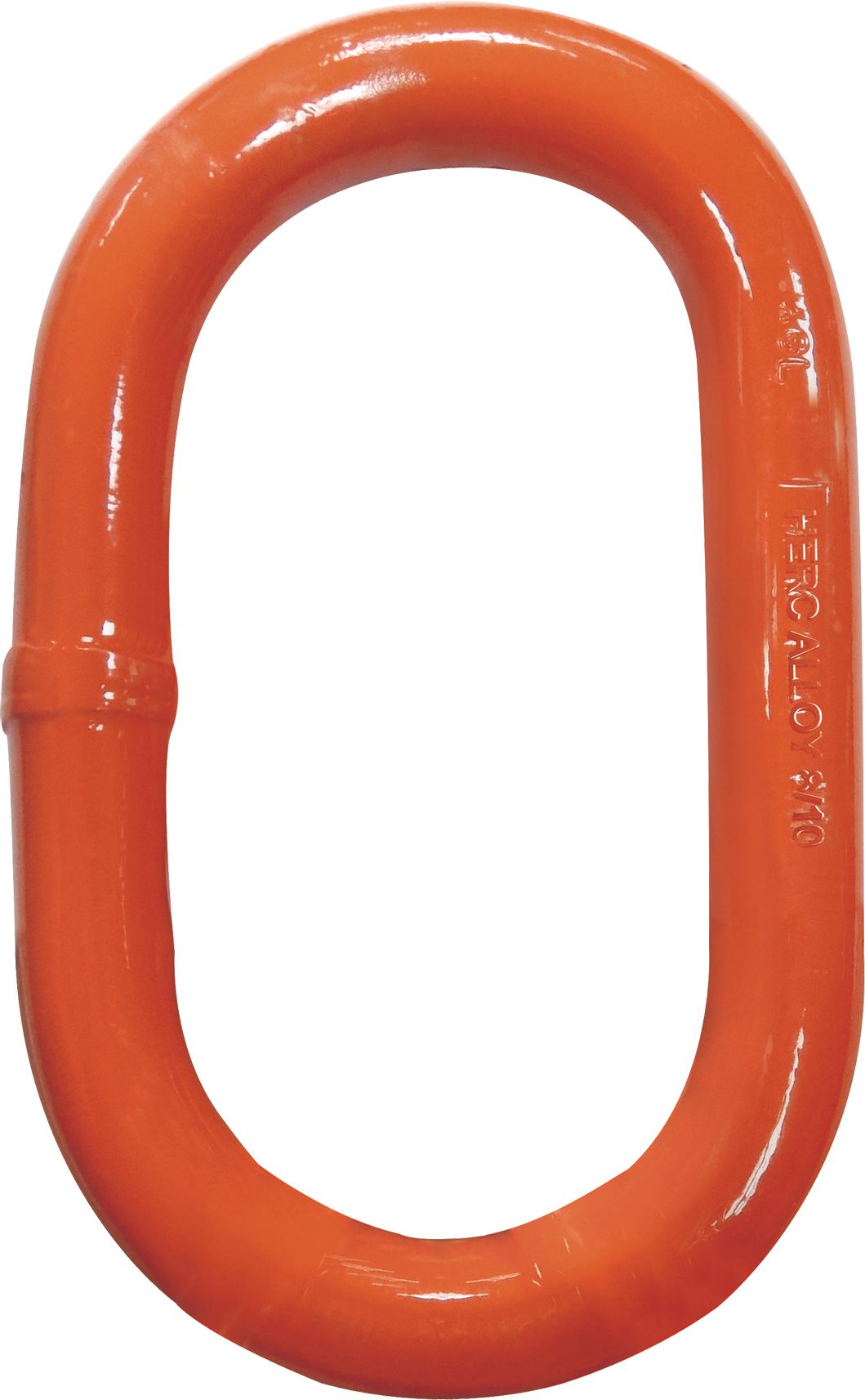

Master Link Sub Assy Oblong Grade 80 Chain, Oblong Master Link for Assembly of Chain Slings, Grade 80 Chain
Master Link Sub Assy Oblong Grade 80 Chain, Oblong Master Link for Assembly of Chain Slings, Grade 80 Chain

Oblong Master Link for Assembly of Chain Slings, Grade 80 Chain
(Pack of 1)

Item#: 88924

CM®

• For assembly of single and double chain slings
CAUTION: Serious damage to a chain may occur when a force exceeding the working load limit is applied. The working load limits should never be exceeded. If a chain is damaged, it should be replaced, not repaired.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

Clevlok Sling Hook Latch Kit, Grade 100, 3/8

Clevlok Sling Hook Latch Kit, Grade 100, 1/2"

Item#: 1429745
Yale® Weld-On Lifting Hook, 2,205 lb WLL, Weld-On Lifting Hook, 2,205 lb WLL

Yale® Weld-On Lifting Hook, 11,025 lb WLL

Item#: 1429750
Repair Lap Link, 3/8

Repair Lap Link, 3/16", 225 lb WLL, Zinc

Item#: 1424935
Repair Lap Link, 3/8

Repair Lap Link, 1/4", 400 lb WLL, Zinc

Item#: 1424939
Repair Lap Link, 3/8

Repair Lap Link, 1/4", 325 lb WLL, Zinc

Item#: 1424937
Double Clevis (Mid-Link), 7/16

Double Clevis (Mid-Link), 5/8", 13,000 lb WLL

Item#: 81644
Master Link, Grade 100, 1-1/4

Master Link, Grade 100, 1-1/4", 45,200 lb WLL

Item#: 1429694
Master Link Sub-Assembly, Grade 100, 1

Master Link Sub-Assembly, Grade 100, 1", 22,900 lb WLL

Item#: 1429702
Master Link, Grade 100, 1-1/4

Master Link, Grade 100, 1", 30,000 lb WLL

Item#: 1429693
Screw Pin Anchor Shackle, 3/8

Screw Pin Anchor Shackle, 3/4", 13,000 lb WLL

Item#: 14492
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 1/16", Aluminum

Item#: 1440343
Screw Pin Anchor Shackle, 3/8

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
SAE Flat Washer Thru-Hardened Steel 1/4

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Product Description

• For assembly of single and double chain slings
CAUTION: Serious damage to a chain may occur when a force exceeding the working load limit is applied. The working load limits should never be exceeded. If a chain is damaged, it should be replaced, not repaired.

Technical Specifications

Item#: 88924
Manufacturer Model #: 554938
Type Master Link
Grade 80
Trade Size 1 "
Working Load Limit 20,800 lb
Material Alloy Steel
Finish Orange Powder Coated
Dimension A 1 "
Dimension B 3-1/2 "
Dimension C 7 "
Chain Size: Single 1/2 or 5/8 "
Chain Size: Double 1/2 "
UNSPSC #: 31151600
TAA Compliant: Yes
Weight: 4.87 lb
