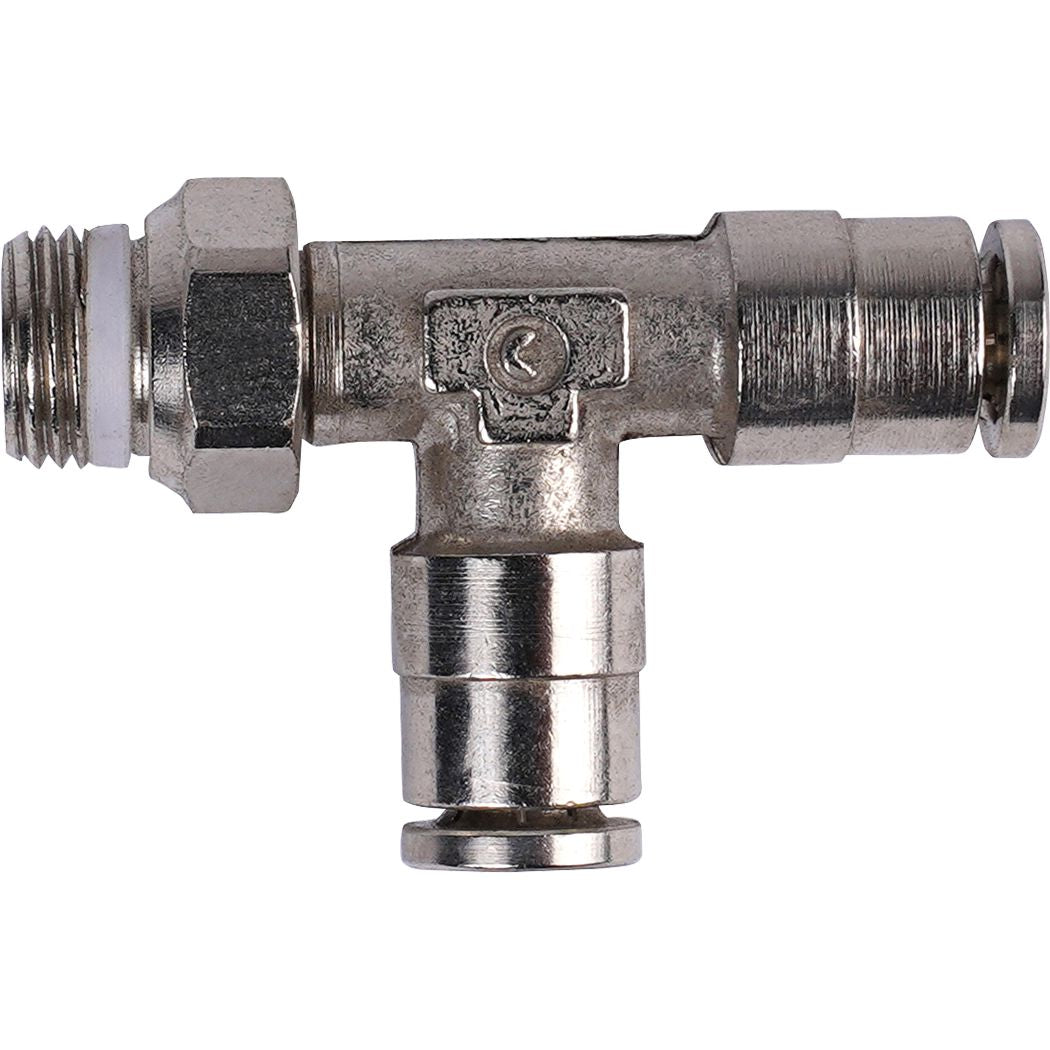

Metric male swivel run tee push-on connector 6mm tube x 1/4 inch mpt (BSPT)
(Pack of
1)
SKU:DY41739007 Item#: DY41739007
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.Technical Specifications
| Item#: | DY41739007 |
|---|---|
| Style | Push-to-Connect |
| Configuration | Male Run Tee |
| Tube Size | 6 mm |
| Thread Size | R1/4 " |
| Thread Style | Metric |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Thread Length | 7 mm |
| Working Pressure | Up To Maximum Working Pressure of Tubing Being Used |
| Temperature Range | -40 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.05 lb |
