Miniature LED Bulb, 25Watt, Resistor Warning Canceller
(Pack of
2)
SKU:1607731 Item#: 1607731
Vehicles are required to have Outage Detection systems that warn drivers when a bulb has burned out. These systems work by monitoring the power consumed by the bulb. When the power drops below a preset threshold, the warning is triggered. The warning can be either a hyperflash (fast-blinking of the turn signal) and/or a warning light on the dashboard.
LED bulbs consume a fraction of the power of incandescent bulbs. This difference can be enough to trigger your car’s outage warning system. In many cases, LED bulbs use so little power they end up triggering an outage warning.

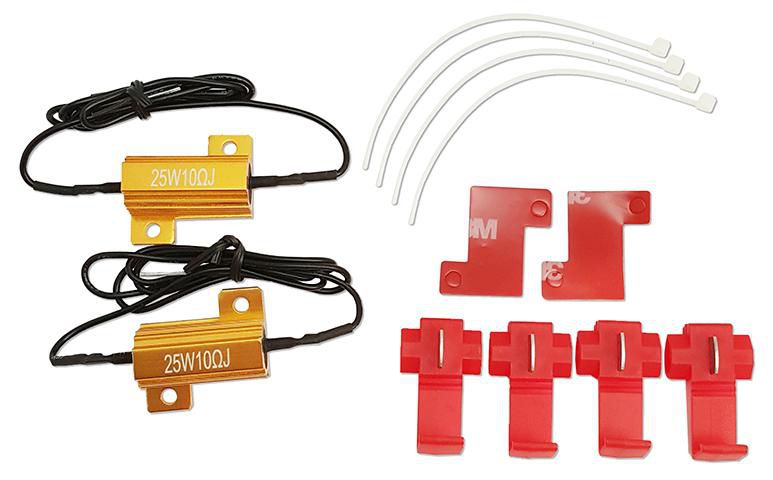

The warning canceller must be connected between the turn and ground wires of the socket. Because its power consumption will be dissipated as heat, it is important to attach it to a flat metal surface so the heat can be safely dissipated.
The required warning canceller is determined by the wattage of the incandescent bulb being replaced. For bulbs inbetween choose whichever is closest.
Couldn't load pickup availability
Catalog page#: 19-20
Frequently Bought Together
H13 Halogen Miniature Bulb 55/60W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Alkaline Battery Headlamp
Couldn't load pickup availability
Vision Pro Cnst Crnt AC/DC Ext Lgt noUSB
Couldn't load pickup availability
3310 LED Glow Light 3x AA 6.14" Green/Glow
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
Couldn't load pickup availability
SAE/Metric 3/8 Socket Blow Molded Case (*Empty Case Only)
Couldn't load pickup availability
2.1 Round Head Ratchet 3/8 Drive 168 Tooth
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Vehicles are required to have Outage Detection systems that warn drivers when a bulb has burned out. These systems work by monitoring the power consumed by the bulb. When the power drops below a preset threshold, the warning is triggered. The warning can be either a hyperflash (fast-blinking of the turn signal) and/or a warning light on the dashboard.LED bulbs consume a fraction of the power of incandescent bulbs. This difference can be enough to trigger your car’s outage warning system. In many cases, LED bulbs use so little power they end up triggering an outage warning.
The warning canceller must be connected between the turn and ground wires of the socket. Because its power consumption will be dissipated as heat, it is important to attach it to a flat metal surface so the heat can be safely dissipated.
The required warning canceller is determined by the wattage of the incandescent bulb being replaced. For bulbs inbetween choose whichever is closest.
Technical Specifications
| Item#: | 1607731 |
|---|---|
| Type | Miniature |
| Light Source | LED |
| Watts | 25 |
| Description | 25w Warning Canceller |
| UNSPSC #: | 25172901 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
