Home Electrical Miniature Toggle Switch SPDT 6A 125V On-None-On
Electrical

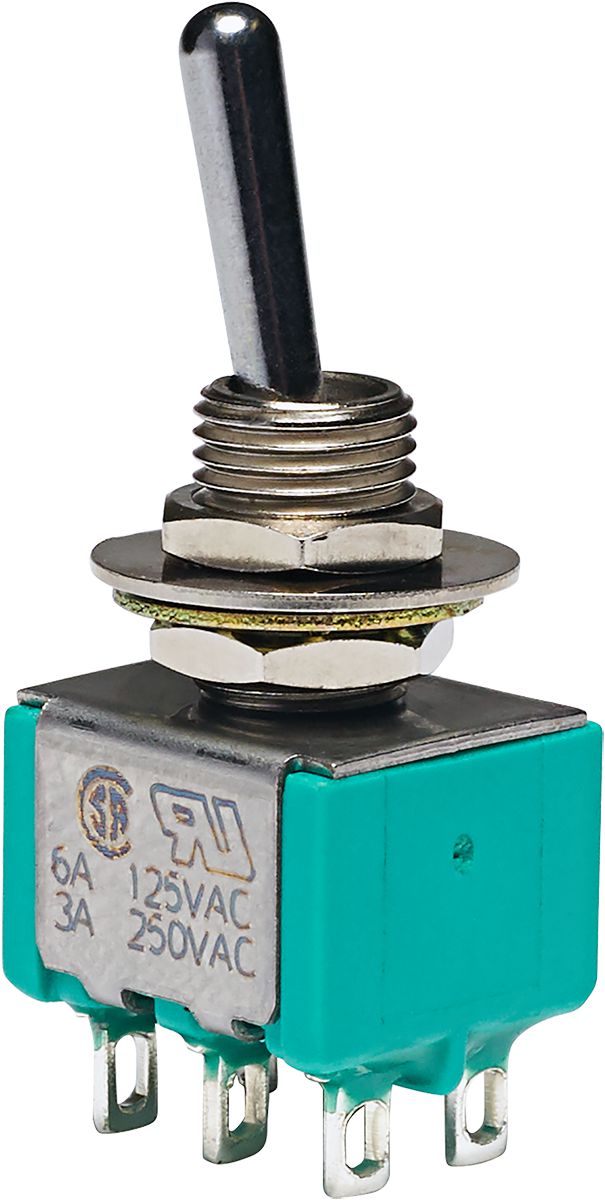

Miniature Toggle Switch, Single Pole Double Throw, 6 Amps, 125 Volts, 3 Blade Terminal, On-None-On
(Pack of 2)

Item#: 90380

Lawson Products

• Silver switching contacts and rockers
• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits

Read More
Check Availability

Catalog page#: 17-126

Frequently Bought Together


ATO/ATC Fuse 20A Yellow

Item#: 83028

Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

Female Quick Slide Terminal 16 to 14 AWG Clear

Item#: 1495183

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Push Button Switch SPST 12VDC Momentary On

Item#: 84489

Universal Pilot Indicator Light 12V 2x 16 AWG

Item#: 84481

Sealed Toggle Switch SPDT 10A 125V

Item#: 1145934

Universal School Bus Switch SPST 36VDC

Item#: 11169

Toggle Switch SPST 50A 6V Off-On

Item#: 52791

Universal Toggle Switch SPST 6A 125V On-Off

Item#: 11171

Product Description

• Silver switching contacts and rockers
• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits

Technical Specifications

Item#: 90380
Style Mini Toggle Switches
Pole Single
Throw Double
Terminal Connection 3 Blades
Switch Positions On - None - On
Mounting Stem Diameter 1/4 "
Electrical Rating Amps at Given Voltage (AC or DC Current) 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
Approvals UL
Type Switches
UNSPSC #: 39122200
TAA Compliant: Yes
Weight: 0.06 lb
