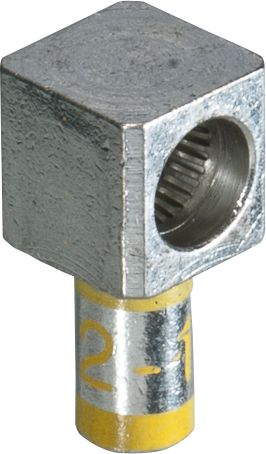

Motor Pigtail Connector, 12 to 10 AWG, Female, Copper, Tin Plate, 1 Body Size
(Pack of
5)
SKU:94386 Item#: 94386
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)

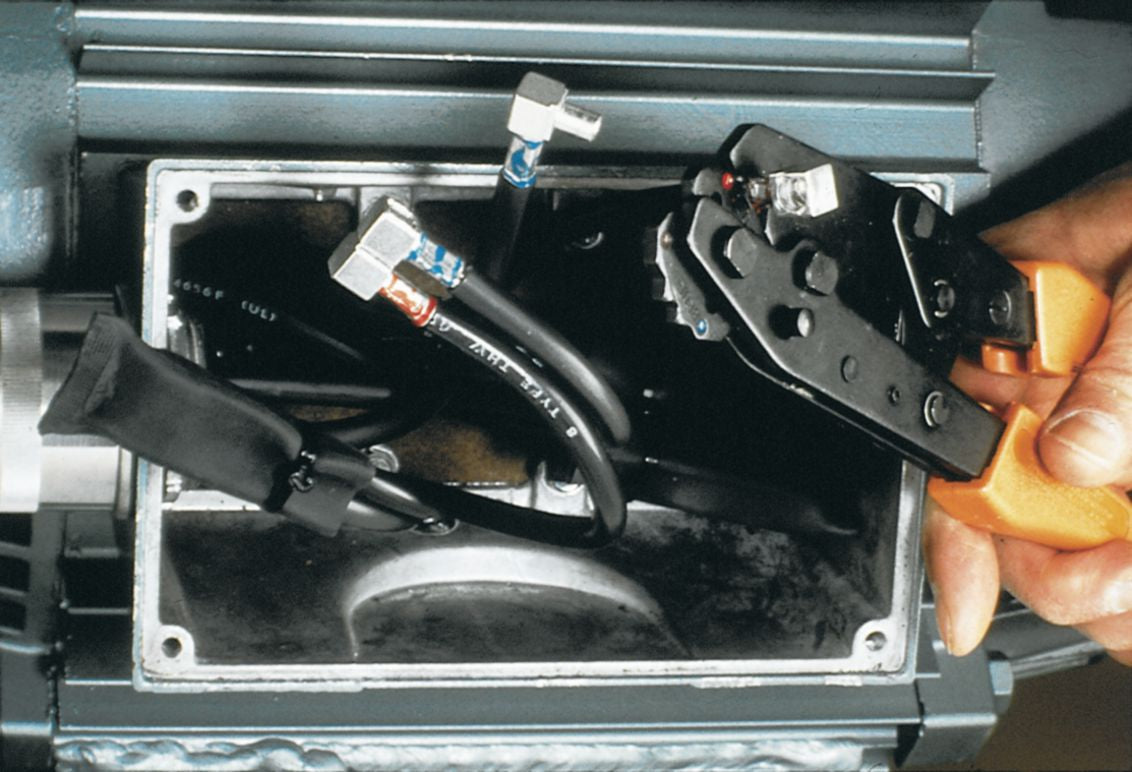

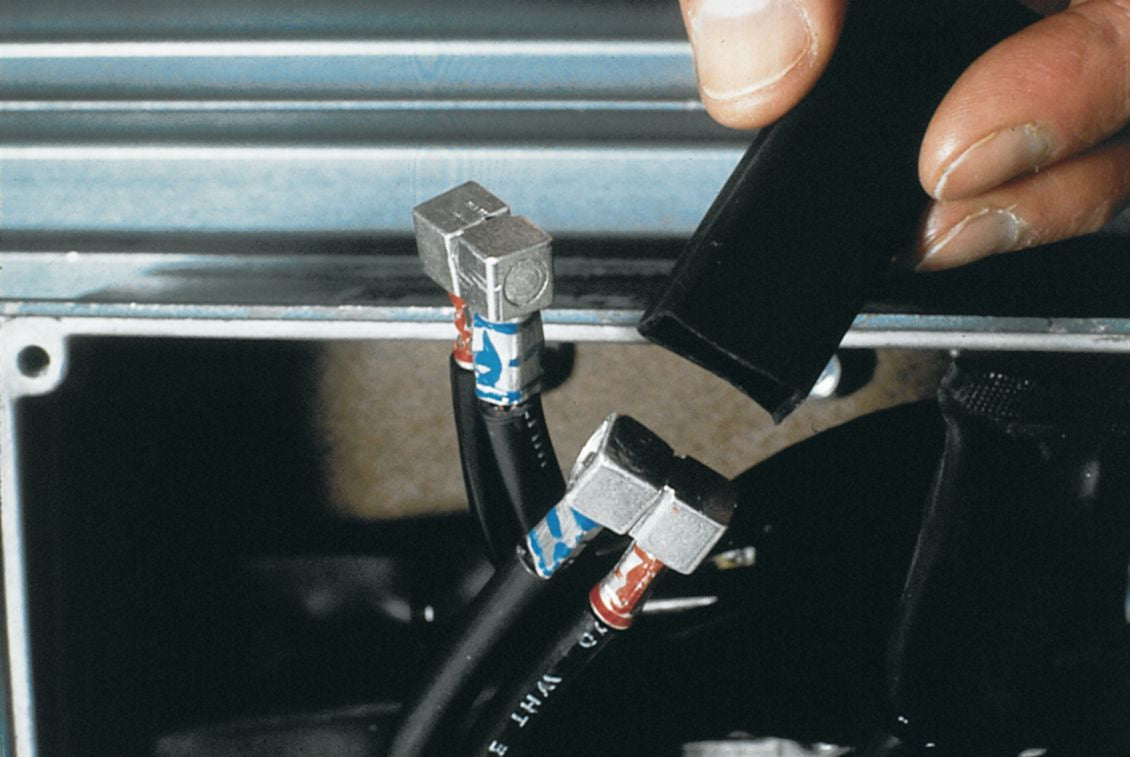

Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Couldn't load pickup availability
Catalog page#: 17-74
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 3/0 AWG
Couldn't load pickup availability
Long Barrel Two-Hole Lug 1/0 AWG Pink
Couldn't load pickup availability
Long Barrel Two-Hole Lug 1 AWG Green
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Slasher Cut-Off Wheel, All Steel, 2 Inch X 1/32 Inch X 3/8 Inch
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
2" Dia. X 1" Wide, Flap Wheel, 80 Grit, 1/4" Shank
Couldn't load pickup availability
Slasher Cut-Off Wheel, All Steel, 2 Inch X 1/32 Inch X 3/8 Inch
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94386 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Female |
| Wire Gauge | 12-10 AWG |
| Body Size | 1 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
