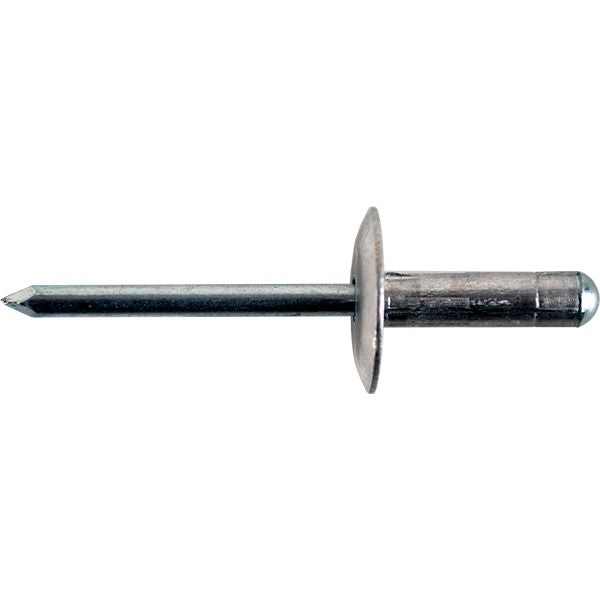

Multi-Grip Rivet Large Flange Head Aluminum 3/16"
(Pack of
100.0)
Large Flange
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-12
Frequently Bought Together
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Multi-Grip Rivet 120° Countersunk Head 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Product Description
Large Flange• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 1984 |
|---|---|
| Type | Multi-Grip |
| Head Style | Large Flange |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.500 – 0.781 " |
| Hole Size | 0.192 – 0.200 " |
| Head Diameter | 0.625 " |
| Head Height | 0.069 " |
| Body Length | 0.978 " |
| Shear Strength | 350 lb |
| Tensile Strength | 530 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.98 lb |
