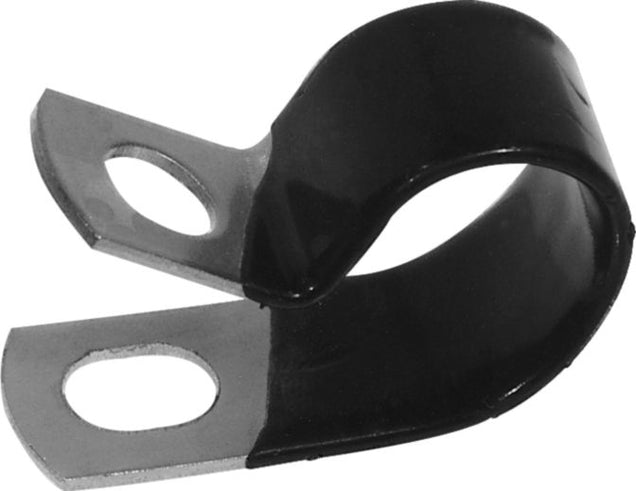

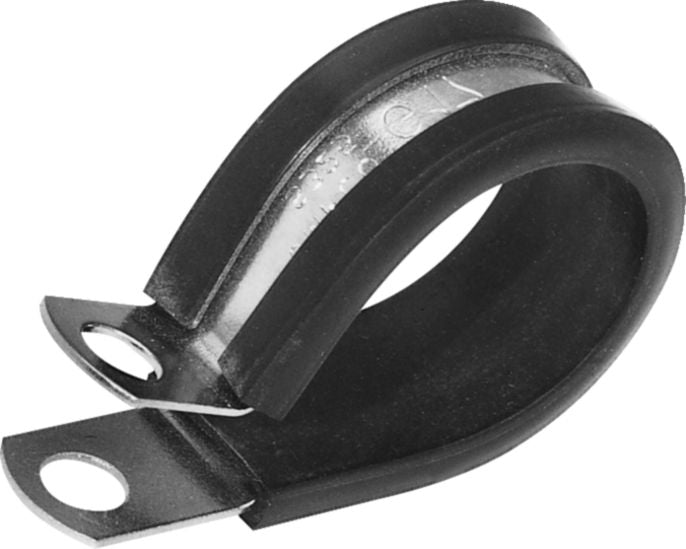

Neoprene Cushioned Cable Clamp, 1'' Internal Diameter, 3/8" Mounting Hole
(Pack of
10)
• Clamps are stamped with the diameter in mm (millimeters) on the band
• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-58
Frequently Bought Together
Heavy-Duty Vinyl Insulated Cable Clamp 1-1/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/16"
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 1-1/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/16"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Clamps are stamped with the diameter in mm (millimeters) on the band• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Technical Specifications
| Item#: | 1609502 |
|---|---|
| Type | Neoprene Cushion |
| Style | 3/8" Mounting Hole |
| I.D. | 1 " |
| Width | 3/4 " |
| Hole Diameter | 0.406 " |
| Metal Gauge | 0.048 " |
| Temperature Range | -50 to 350 F |
| UNSPSC #: | 39121705 |
| TAA Compliant: | Yes |
| Weight: | 0.71 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
