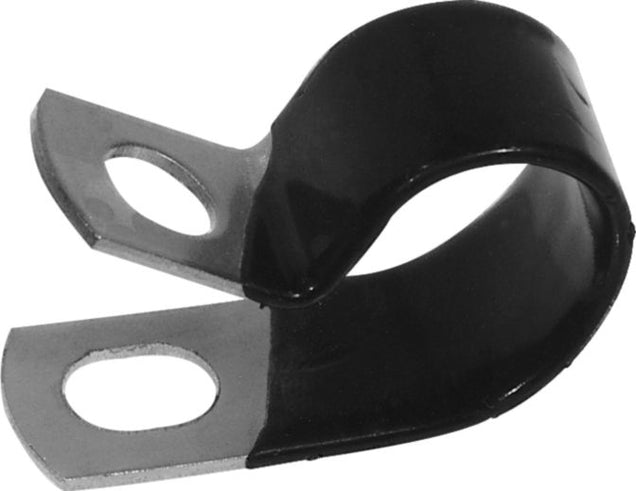

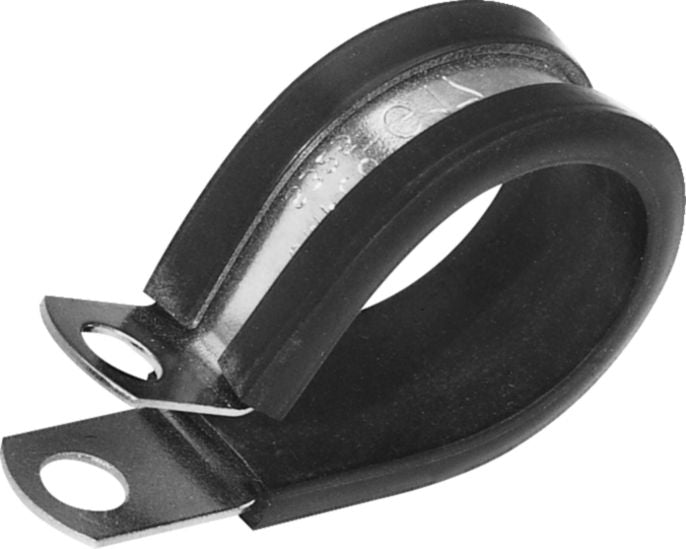

Neoprene Cushioned Cable Clamp 7/8"
(Pack of
25)
• Clamps are stamped with the diameter in mm (millimeters) on the band
• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 17-58
Frequently Bought Together
Heavy-Duty Vinyl Cable Clamp 9/16''
Couldn't load pickup availability
Heavy-Duty Vinyl Cable Clamp 5/16''
Couldn't load pickup availability
Neoprene Cushioned Cable Clamp 2-15/16"
Couldn't load pickup availability
Color-Coded Nylon Cable Tie 8" Orange
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 1-1/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 5/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Cable Clamp 5/16''
Couldn't load pickup availability
Vinyl Insulated Closed Clip for Cable/Conduit 3/4"
Couldn't load pickup availability
Vinyl Insulated Closed Clip for Cable/Conduit 3/4"
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
• Clamps are stamped with the diameter in mm (millimeters) on the band• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Technical Specifications
| Item#: | 90224 |
|---|---|
| Type | Neoprene Cushion |
| Style | 1/4" Mounting Hole |
| I.D. | 7/8 " |
| Width | 1/2 " |
| Diameter | 22 mm |
| Hole Diameter | 0.281 " |
| Industry Number | 14 |
| Specifications | MIL QQ-S-636/AMS 3209 |
| Metal Gauge | 0.032 " |
| Coating Thickness | 0.062 " |
| Temperature Range | -50 to 350 F |
| UNSPSC #: | 39121705 |
| TAA Compliant: | Yes |
| Weight: | 0.76 lb |
