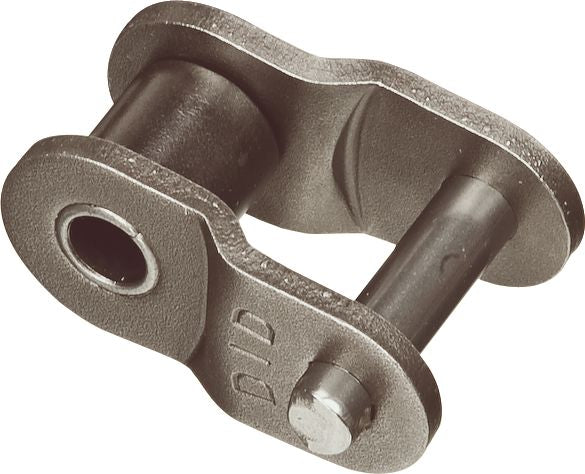

Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2, 3/4" Pitch, 14,080lbs Average Tensile Strength
(Pack of
5)
SKU:57045 Item#: 57045
Offset links are a combination of connecting and adding links that allow the user to increase the length of the chain. Also referred to as add-and-connect links. They are used to adjust chain length by one link
• Manufactured from superior raw materials and produced to exacting tolerances in highly-automated manufacturing facilities
• Meets ANSI & JIS Standards
• Use for all types of farm equipment, water well and drilling rigs, all types of conveyors, off-road construction machinery, canning and food processing industry
Frequently Bought Together
Offset Link (Half Link), Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Connecting Link, Double Pitch, A-Type, Steel, Industry No. A 2060
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 3,000 lb WLL
Couldn't load pickup availability
Wire Rope Clip, Malleable, Galvanized, 3/16"
Couldn't load pickup availability
Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 40
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Nickel Plated, Industry No
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
Offset links are a combination of connecting and adding links that allow the user to increase the length of the chain. Also referred to as add-and-connect links. They are used to adjust chain length by one link• Manufactured from superior raw materials and produced to exacting tolerances in highly-automated manufacturing facilities
• Meets ANSI & JIS Standards
• Use for all types of farm equipment, water well and drilling rigs, all types of conveyors, off-road construction machinery, canning and food processing industry
Technical Specifications
| Item#: | 57045 |
|---|---|
| Configuration | Offset Link (Half Link) |
| Type | Double Strand |
| Style | British |
| Material | Steel |
| Finish | Plain |
| Industry Number | 12B-2 |
| Pitch | 3/4 " |
| Roller Width | 0.460 " |
| Roller Diameter | 0.475 " |
| Plate Thickness | 0.071 " |
| Plate Height | 0.634 " |
| Minimum Tensile Strength | 12,958 lb |
| Average Tensile Strength | 14,080 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | No |
| Weight: | 0.58 lb |
