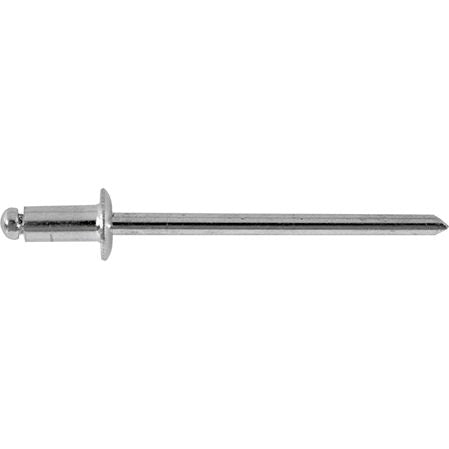

Open End Rivet Dome Head Aluminum 1/8"
(Pack of
100.0)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-4
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Nosepiece for 491 Rivet Tool 1/8"
Couldn't load pickup availability
Threaded Insert Adapter for 95161 Tool
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1965 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/8 " |
| Grip Range | 0.063 – 0.125 " |
| Industry Number | 42 |
| Hole Size | 0.129 – 0.133 " |
| Drill Size | #30 |
| Head Diameter | 0.250 " |
| Head Height | 0.040 " |
| Body Length | 0.275 " |
| Shear Strength | 120 lb |
| Tensile Strength | 150 lb |
| Kent Complete 2 Location | Drawer N : Row 1 : Column 1 |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.11 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
