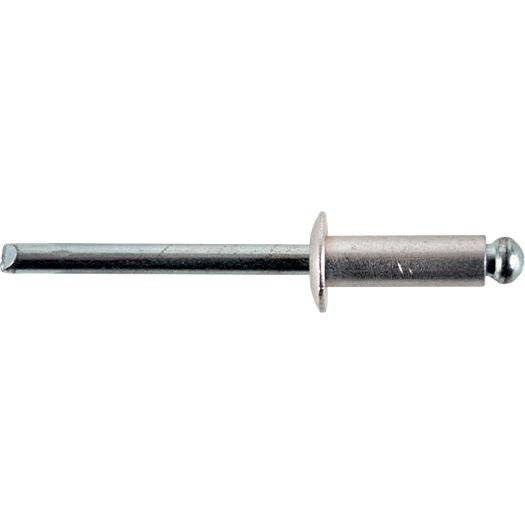

Open End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.251 to 0.375" Grip Range, 0.575" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-6
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet Large Flange Head Steel 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1957 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.251 – 0.375 " |
| Industry Number | 66 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.575 " |
| Shear Strength | 380 lb |
| Tensile Strength | 500 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.67 lb |
