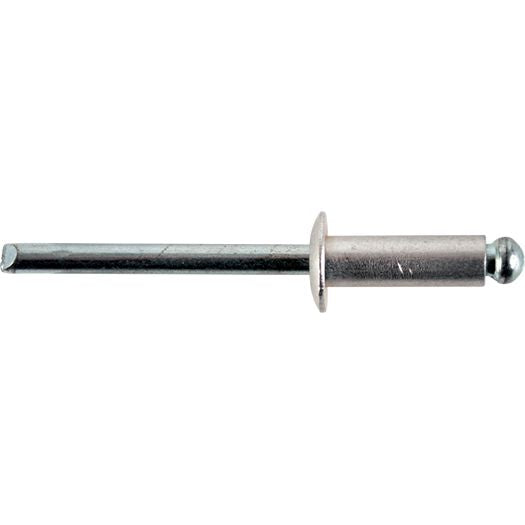

Open End Rivet Dome Head Aluminum 5/32"
(Pack of
100.0)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-6
Frequently Bought Together
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Backup Washer Round Steel 3/16" Hole
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1954 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 5/32 " |
| Grip Range | 0.251 – 0.375 " |
| Industry Number | 56 |
| Hole Size | 0.160 – 0.164 " |
| Drill Size | #20 |
| Head Diameter | 0.315 " |
| Head Height | 0.050 " |
| Body Length | 0.550 " |
| Shear Strength | 260 lb |
| Tensile Strength | 350 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.435 lb |
