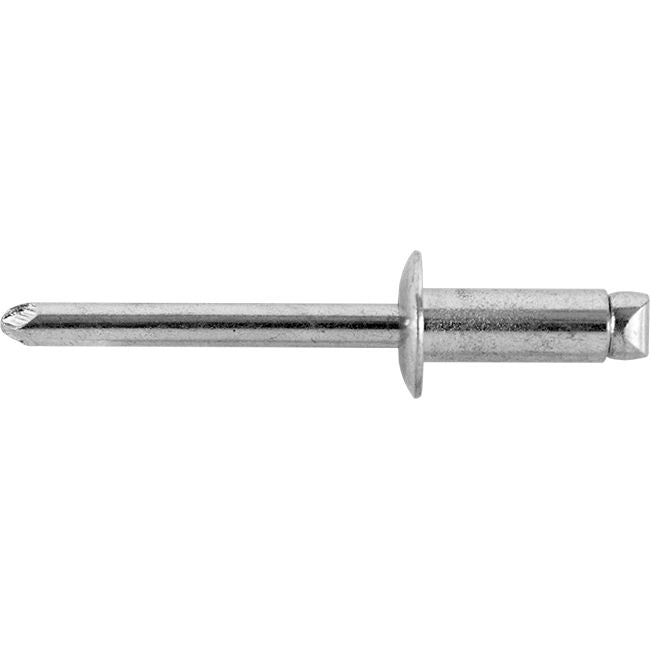

Open End Rivet, Dome Head, Steel, 3/16" Diameter, 0.376 to 0.5" Grip Range, 0.7" Body Length
(Pack of
100)
SKU:1945 Item#: 1945
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
Catalog page#: 7-8
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1945 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body / Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 68 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.700 " |
| Shear Strength | 540 lb |
| Tensile Strength | 680 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.11 lb |
