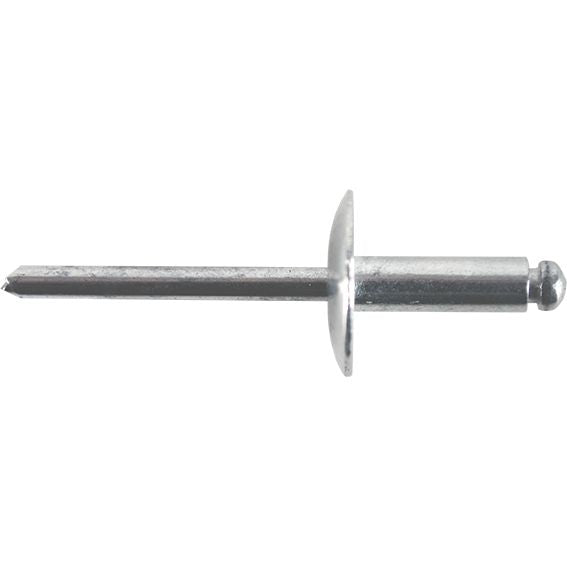

Open End Rivet Large Flange Head Aluminum 1/8"
(Pack of
100.0)
Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-5
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
Large Flange• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 41628 |
|---|---|
| Type | Open End |
| Head Style | Large Flange |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/8 " |
| Grip Range | 0.126 – 0.187 " |
| Industry Number | 43 |
| Hole Size | 0.129 – 0.133 " |
| Drill Size | #30 |
| Head Diameter | 0.375 " |
| Head Height | 0.065 " |
| Body Length | 0.337 " |
| Shear Strength | 120 lb |
| Tensile Strength | 150 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.14 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
