Home Air Brake Push-to-Connect Parker DOT PTC Male Elbow Long Rigid 90 Degrees 3/8x1/2
Air Brake Push-to-Connect

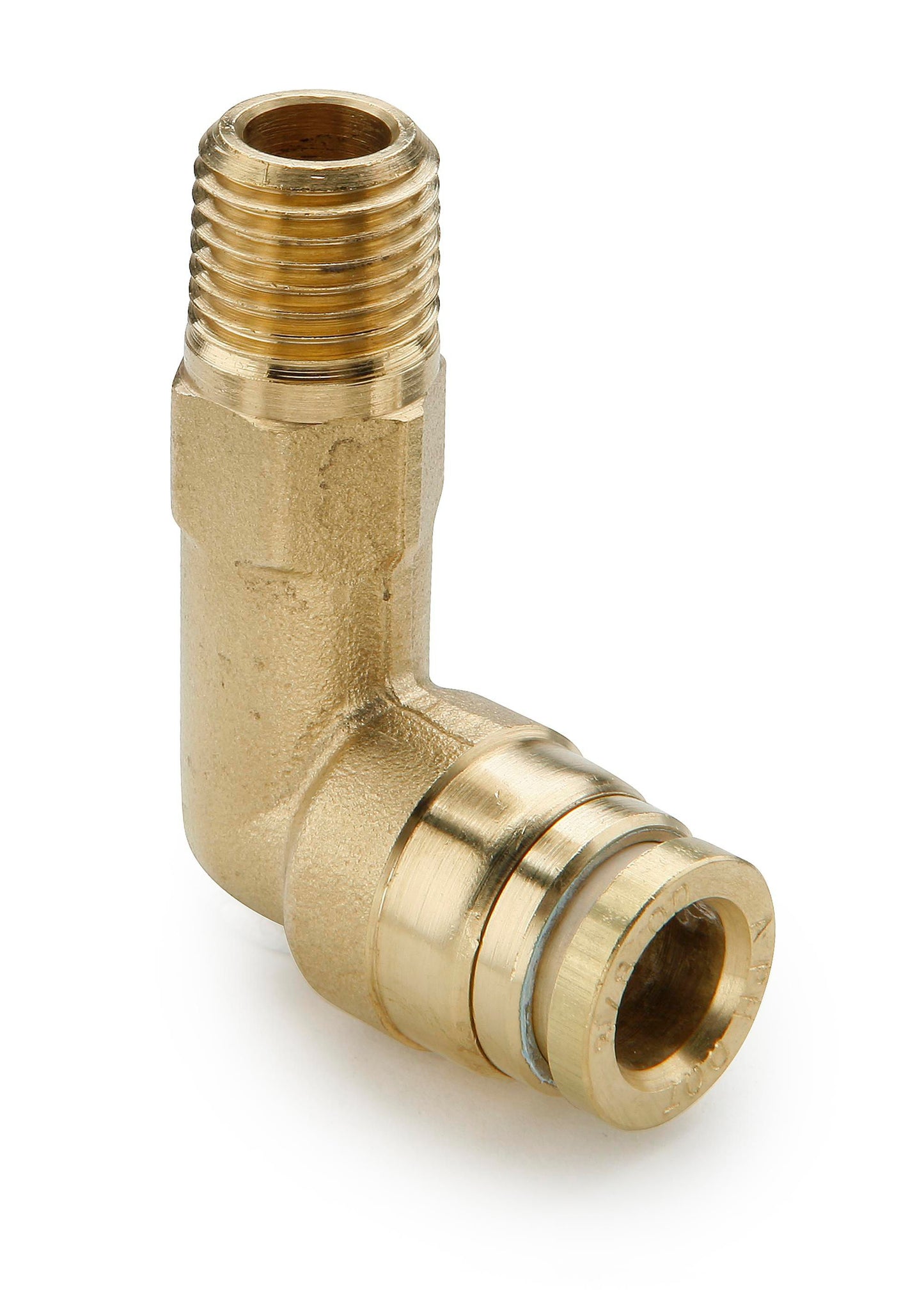

Parker DOT Brass Air Brake Fitting - Push-to-Connect Male Elbow Long Rigid 90 Degrees 3/8x1/2
(Pack of 10)

Item#: 1608741

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-20
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 23-6

Frequently Bought Together


DOT Connector Male Brass 1/2 x 1/2-14

Item#: 27184

DOT Connector Male Brass 1/2 x 3/8-18

Item#: 57508

DOT Elbow Male 90° Brass 1/4 x 1/4-18

Item#: 57510

DOT Compression Connector Male Brass 1/4 x 1/8"

Item#: 84266

DOT Connector Male Brass 3/8 x 3/8-18

Item#: 57507

DOT Elbow Male 90° Brass 3/8 x 1/4-18

Item#: 57511

Hose Clamp 304 SS 1-13/16 to 2-3/4"

Item#: 87142

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Vision Pro Super

Item#: DY21061040

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Swivel Head Ratchet 3/8 Drive

Item#: DY89310010

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-20
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 1608741
Manufacturer Model #: 169PTCL-6-8
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Male Long Elbow 90 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/2 "
Parker Reference No. 169PMTL-6-8
UNSPSC #: 27131600
TAA Compliant: No
Weight: 3.91 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
