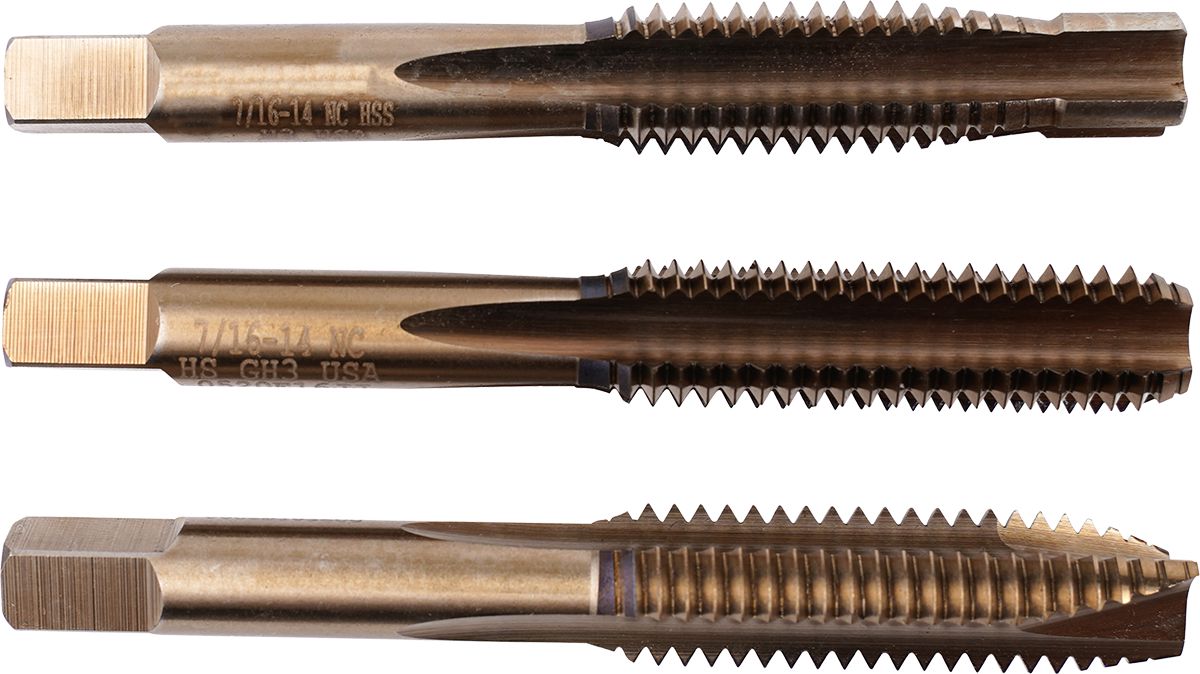

Pilotdrive Cryotap 7/16"-14 Tri-Pak, Pilotdrive, Plug, Bottoming Hand Taps
(Pack of
1)
SKU:DY80692503 Item#: DY80692503
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
Couldn't load pickup availability
Mini-Hole Saw Kit
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 3/8-16
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap 5/16-18
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M6 x 1
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 5/16-18
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap 8-32
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap M6 x 1
Couldn't load pickup availability
3" Pneumatic Cut-Off Tool
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80692503 |
|---|---|
| Type | Fractional |
| Style | Set |
| Material | CM-8™ Tool Steel |
| Diameter | 7/16 " |
| Pitch | 14 |
| Flutes | 4 |
| Thread Length | 3-5/32 " |
| H Limits | 4 |
| Recommended Drill Size | U |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.27 lb |
