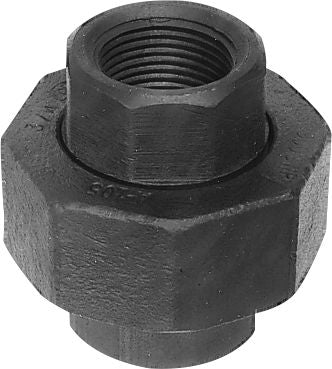

Pipe Union, Steel, Black, 1/4-18 x 1/4-18, Female NPT x Female NPT, 3000PSI
(Pack of
3)
SKU:83175 Item#: 83175
3,000 PSI Screwed Fittings
• Black finish• All fittings, except Hex Bushings and Plugs, have 3,000 lb. rating stamped on face
• Meets ASTM A105-11 and ASTM A181-11 specifications and manufactured to ANSI B16-11 dimensional standards
Couldn't load pickup availability
Catalog page#: 9-53
Frequently Bought Together
Pipe Nipple Steel Black Schedule 40 Welded 1/4-18 x 7/8 " Close
Couldn't load pickup availability
Merchant Coupling Steel 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Elbow Malleable Iron 90° 1-11-1/2 x 1-11-1/2
Couldn't load pickup availability
Pipe Nipple Steel Black Schedule 40 Welded 3/4-14 x 1-3/8 " Close
Couldn't load pickup availability
Reducing Coupling Malleable Iron 3/4-14 x 1/2-14
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
3,000 PSI Screwed Fittings• Black finish• All fittings, except Hex Bushings and Plugs, have 3,000 lb. rating stamped on face
• Meets ASTM A105-11 and ASTM A181-11 specifications and manufactured to ANSI B16-11 dimensional standards
Technical Specifications
| Item#: | 83175 |
|---|---|
| Fitting Type | Pipe |
| Material | Steel |
| Schedule | Dyna-Forged |
| Class | 3,000 lb |
| Configuration | Union |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Finish | Black |
| Quantity Per Package | 3.0000 |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 1.67 lb |
