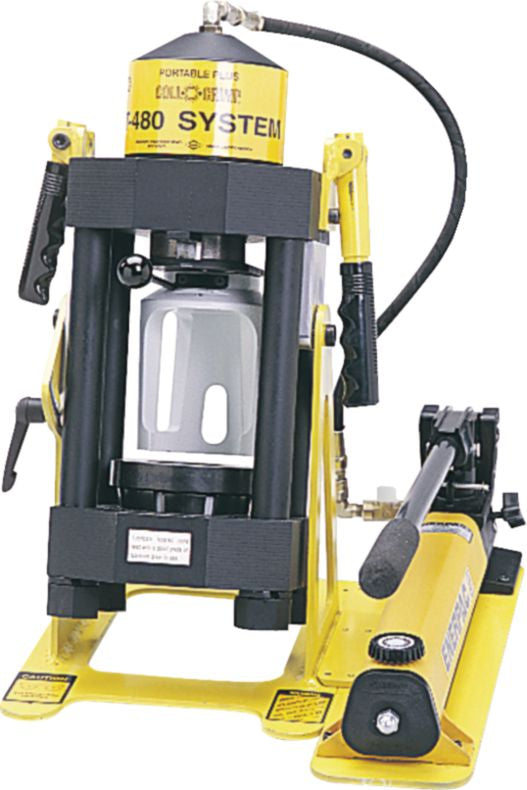

Portable Coll-O-Crimp Press and Hand Pump Package
(Pack of
1.0)
Make factory-type hose assemblies anywhere with portable T-480 Pump systems that include both the press and pump. Expect factory-quality custom hose assemblies, and ensure that vital operations remain productive. Choose from three systems: Coll-O-Crimp® Press T-480 combined with electric pump, hand pump or air/hydraulic pump.
• Overall press capacity from 3/16" single fiber braid through 1-1/4" 6-spiral hose (additional tooling required)
• Compact size: 10-1/2"W x 22-1/2"H x 14"D
• Note: To crimp 1/4" to 1-1/4" one- and two-braid Coll-O-Crimp® hose, order Adapter Ring T-420-25, Item No. 63689, and corresponding T-400 Series spacer rings and U-Series collets
• To crimp 1/2" to 1-1/4" 4-spiral Coll-O-Crimp® hose, order 430 U-Series collets*
Tooling Kit contents:
1/2" 430U-Series Collet T-420-4CN, Item No. 63690
3/4" 430U-Series Collet T-420-5CN, Item No. 63691
1" 430U-Series Collet T-420-6CN, Item No. 63692
1-1/4" 430U-Series Collet T-420-7CN, Item No. 63693
Black Spacer Ring T-400-10, Item No. 51384
Silver Spacer Ring T-400-11 Item No. 51385
Yellow Spacer Ring T-400-62, Item No. 56269
Adapter Ring for T-400 U-Series Collets T-420-25, Item No. 63689
1/4" U-Series Collet T-400-2C, Item No. 51379
3/8" U-Series Collet T-400-3C, Item No. 51380
1/2" U-Series Collet T-400-4C, Item No. 51381
3/4" U-Series Collet T-400-5C, Item No. 51382
1" U-Series Collet T-400-6C, Item No. 51383
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
E-Z Clip Air Conditioning Connecting Tool for Hose
Couldn't load pickup availability
GC16 35-L Die
Couldn't load pickup availability
GC16XD Gates Mini Crimper Only
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
Make factory-type hose assemblies anywhere with portable T-480 Pump systems that include both the press and pump. Expect factory-quality custom hose assemblies, and ensure that vital operations remain productive. Choose from three systems: Coll-O-Crimp® Press T-480 combined with electric pump, hand pump or air/hydraulic pump.• Overall press capacity from 3/16" single fiber braid through 1-1/4" 6-spiral hose (additional tooling required)
• Compact size: 10-1/2"W x 22-1/2"H x 14"D
• Note: To crimp 1/4" to 1-1/4" one- and two-braid Coll-O-Crimp® hose, order Adapter Ring T-420-25, Item No. 63689, and corresponding T-400 Series spacer rings and U-Series collets
• To crimp 1/2" to 1-1/4" 4-spiral Coll-O-Crimp® hose, order 430 U-Series collets*
Tooling Kit contents:
1/2" 430U-Series Collet T-420-4CN, Item No. 63690
3/4" 430U-Series Collet T-420-5CN, Item No. 63691
1" 430U-Series Collet T-420-6CN, Item No. 63692
1-1/4" 430U-Series Collet T-420-7CN, Item No. 63693
Black Spacer Ring T-400-10, Item No. 51384
Silver Spacer Ring T-400-11 Item No. 51385
Yellow Spacer Ring T-400-62, Item No. 56269
Adapter Ring for T-400 U-Series Collets T-420-25, Item No. 63689
1/4" U-Series Collet T-400-2C, Item No. 51379
3/8" U-Series Collet T-400-3C, Item No. 51380
1/2" U-Series Collet T-400-4C, Item No. 51381
3/4" U-Series Collet T-400-5C, Item No. 51382
1" U-Series Collet T-400-6C, Item No. 51383
Technical Specifications
| Item#: | 63682 |
|---|---|
| Category | Crimper System |
| Description | Portable Hand Pump with Press |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
| Weight: | 156.0 lb |
