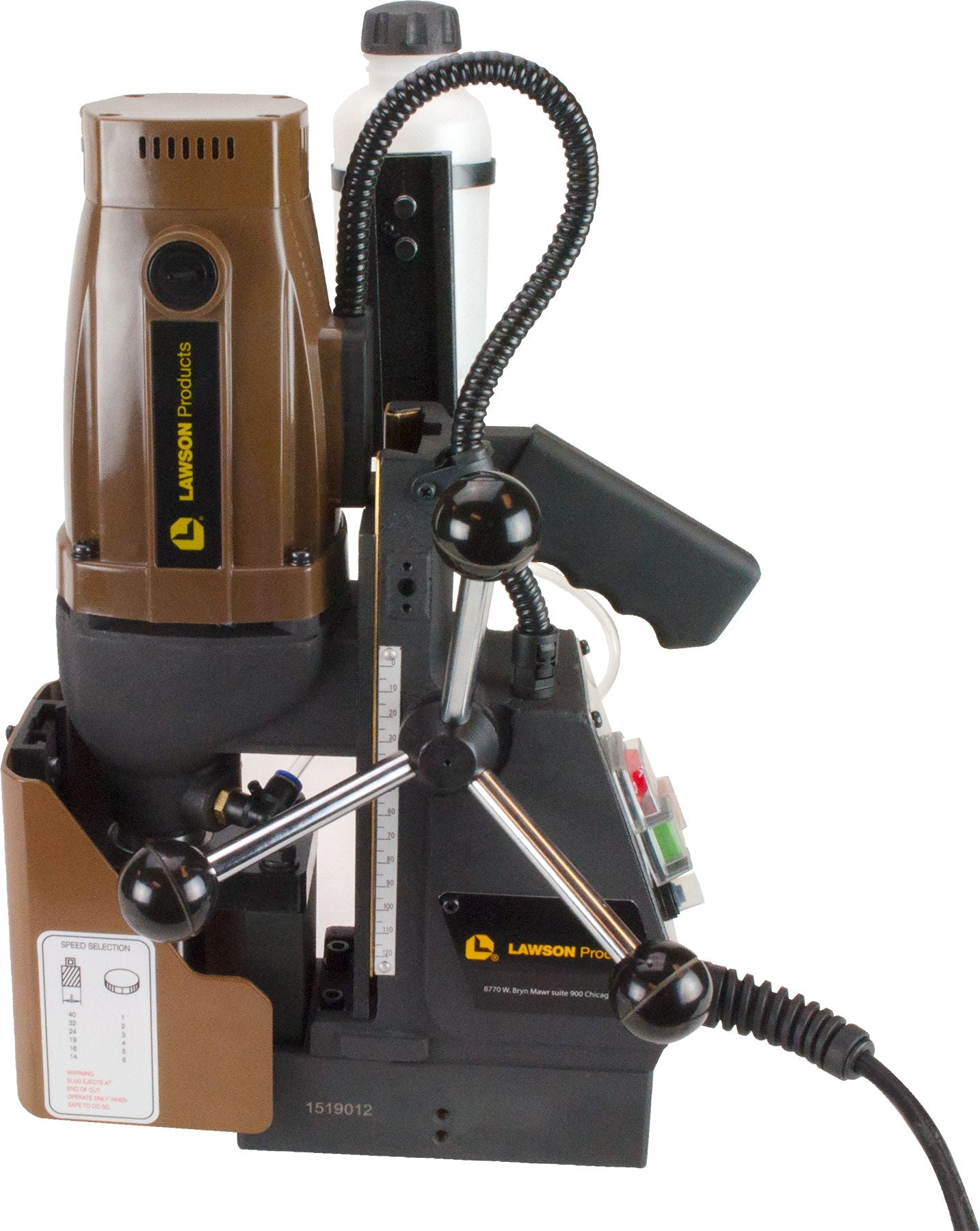

Portable Magnetic Drill 1-1/2"
(Pack of
1.0)
Lawson Products Portable Magnetic Drill offers a versatile range of high-performance electromagnetic drilling to provide several options for quick, efficient, accurate metal cutting solutions. The Lawson Mag Drill can accommodate the crucial 1-1/2" bolt-hole size (maximum 1-5/8"), unlike the majority of mag drills which have a maximum capacity of 1-3/8".
• Larger drilling capacity than standard drills in its class
• Automatic coolant system with removable reservoir
• Ideal for large hole drilling on-site or in the workshop
• Standard 3/8" drill chuck adapter for portable drilling
• Smart Magnet recognizes magnetic holding power
• Clutch and overload protection
• Accepts standard 3/4" Weldon shank
Specifications:
• Height: 20" maximum; 16-3/4" minimum
• Width: 7"
• Length: 10-1/2"
• Weight: 32 lbs.
• Motor: 1.6 hp 120V, 10A, 1200W (single phase)
• No load RPM range (120V): 270 to 610 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,650 lbs.
• Magnetic base: 6-1/2" x 3-1/8" x 1-49/64"
• Magnetic dead lift: 1,653 lbs.
• Cutter dia. (maximum): 1-1/2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-49/64"
• Centerline pilot to motor face: 2-11/64"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-30
Frequently Bought Together
Annular Cutter Ejector Pin For 1" Cutting Depth Cutters
Couldn't load pickup availability
Annular Cutter Ejector Pin For 2" Cutting Depth Cutters
Couldn't load pickup availability
1" Dia. Carbide Tipped Annular Cutter, 1-3/8" Cutting Depth
Couldn't load pickup availability
Stemmed Crimped Wire Wheel 2"
Couldn't load pickup availability
3/8" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Couldn't load pickup availability
Low Profile Portable Magnetic Drill 2"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Scotch-Brite Roloc Surface Conditioning Disc 2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Brown
Couldn't load pickup availability
Product Description
Lawson Products Portable Magnetic Drill offers a versatile range of high-performance electromagnetic drilling to provide several options for quick, efficient, accurate metal cutting solutions. The Lawson Mag Drill can accommodate the crucial 1-1/2" bolt-hole size (maximum 1-5/8"), unlike the majority of mag drills which have a maximum capacity of 1-3/8".• Larger drilling capacity than standard drills in its class
• Automatic coolant system with removable reservoir
• Ideal for large hole drilling on-site or in the workshop
• Standard 3/8" drill chuck adapter for portable drilling
• Smart Magnet recognizes magnetic holding power
• Clutch and overload protection
• Accepts standard 3/4" Weldon shank
Specifications:
• Height: 20" maximum; 16-3/4" minimum
• Width: 7"
• Length: 10-1/2"
• Weight: 32 lbs.
• Motor: 1.6 hp 120V, 10A, 1200W (single phase)
• No load RPM range (120V): 270 to 610 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,650 lbs.
• Magnetic base: 6-1/2" x 3-1/8" x 1-49/64"
• Magnetic dead lift: 1,653 lbs.
• Cutter dia. (maximum): 1-1/2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-49/64"
• Centerline pilot to motor face: 2-11/64"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1574562 |
|---|---|
| Height | 20" maximum; 16-3/4" minimum |
| Width | 7 " |
| Length | 10-1/2 " |
| Weight | 32.19 |
| Magnetic Dead Lift | 1,653 |
| Motor | 1.6 hp 120V 10A 1200W (Single phase) |
| Arbor Bore | 3/4 " |
| Cutter Diameter | 1-1/2 " |
| Depth of Cut | 2 " |
| Drill Point Breakaway | 1650 |
| Magnetic Base | 6-1/2"X 3-1/8" X"2" |
| Centerline Pilot to Motor Face | 2-11/64 " |
| Centerline Pilot to Magnet Face | 1-49/64 " |
| UNSPSC #: | 23241801 |
| TAA Compliant: | Yes |
| Weight: | 44.0 lb |
