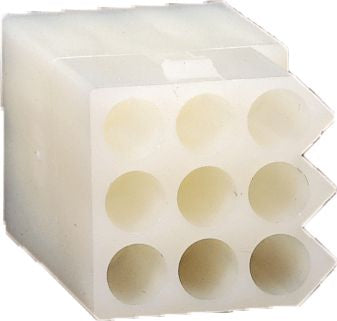

Power Connector Housing 9-Wire Receptacle
(Pack of 2)

Lawson Products

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 17-60, 17-60, 22-23, 22-23

Frequently Bought Together


Female Quick Slide Terminal 22 to 18 AWG Clear

Item#: 1495181

Nylon Cable Tie 6" Black

Item#: 29583

Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black

Item#: 86502

Socket Terminal 22 to 18 AWG

Item#: 1145864

Power Connector Housing 12-Wire Plug

Item#: 98805

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Ring Tongue Terminal 12 to 10 AWG Yellow

Item#: 92814

Male Quick Slide Terminal 16 to 14 AWG Blue

Item#: 25287

Ring Tongue Terminal 16 to 14 AWG Blue

Item#: 86041

Product Description

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Technical Specifications

Item#: 98798
Type Receptacle
Maximum Voltage 250 V
Approvals UL recognized File No. E-29179 and CSA certified, File No. LR-19980
Description 9 Wire
Style Pin and Socket Receptacles
UNSPSC #: 39121432
TAA Compliant: Yes
Weight: 0.03 lb
