Home Fasteners Pull Rivet Large Flange Head Steel 3/16"
Fasteners

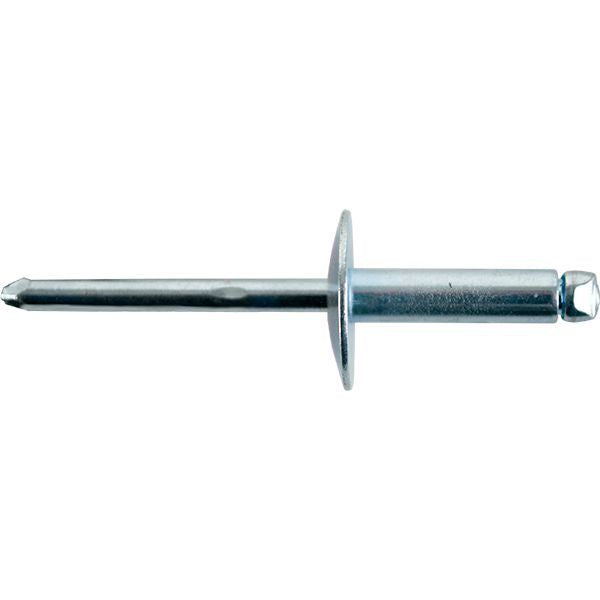

Pull Rivet, Grip-Tite, Large Flange Head, Steel, 3/16" Diameter, 0.251 to 0.375" Grip Range, 0.575" Body Length
(Pack of 100)

Lawson Products

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Open End Rivet Dome Head Steel 1/4"

Item#: 85101

Open End Rivet Dome Head Aluminum 3/16"

Item#: 82338

Open End Rivet Dome Head Aluminum 1/8"

Item#: 82336

Open End Rivet 120° Countersunk Head Steel 1/8"

Item#: 488

Open End Rivet Large Flange Head Aluminum 1/8"

Item#: 1973

Multi-Grip Rivet Dome Head Aluminum 1/8"

Item#: 1979

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Butt Connector 22 to 18 AWG Red

Item#: 92822

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

Penefree

Item#: DY60025622

Air Brake Tube Insert Brass 1/4"

Item#: 1511698

Product Description

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Technical Specifications

Item#: P43361M01
Type Open End
Head Style Large Flange
Material Body/Mandrel Steel/Steel
Diameter 3/16 "
Grip Range 0.251 – 0.375 "
Industry Number 66
Hole Size 0.192 – 0.196 "
Drill Size #11
Head Diameter 0.615 "
Head Height 0.090 "
Body Length 0.575 "
Shear Strength 610 lb
Tensile Strength 870 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 1.3 lb
