Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

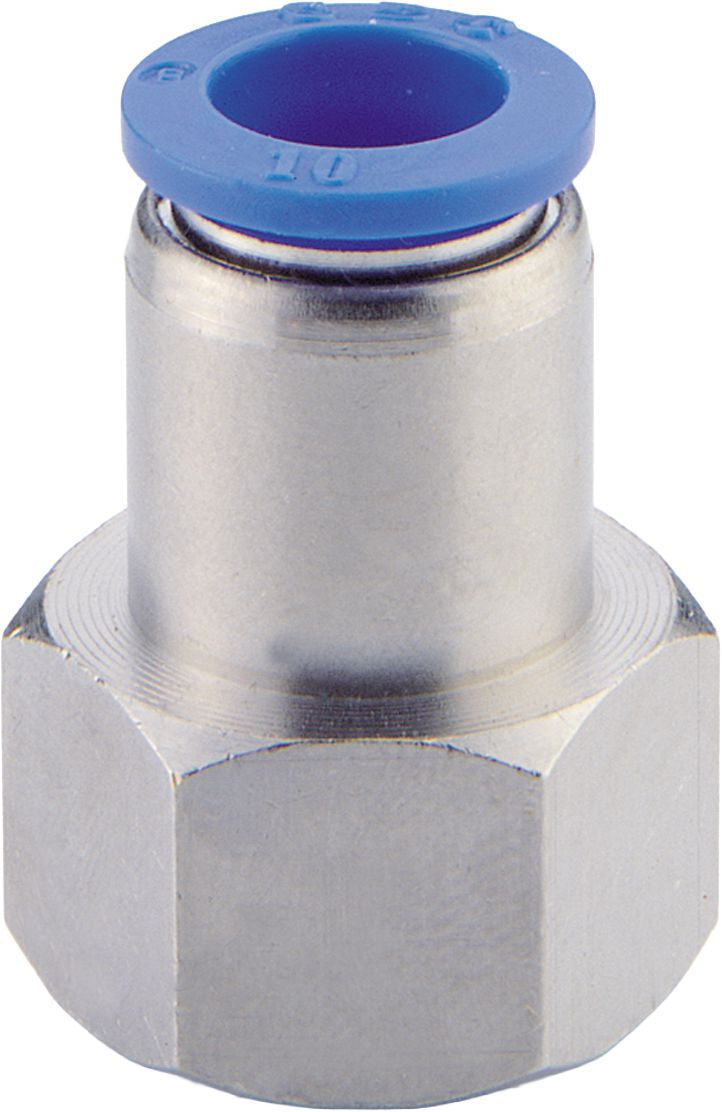

Push-to-Connect Straight Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8", Tube x Female NPT, 150 PSI Working Pressure
(Pack of 3)

Item#: 86803

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-30

Frequently Bought Together

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8"

Item#: 86751
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32" x M5-0.8

Item#: 62237
Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 5/16

Push-to-Connect Reducer, Nickel-Plated Brass/PBT Resin, 1/4 x 5/16"

Item#: 62231
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"

Item#: 98196
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/4"

Item#: 62259
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm

Item#: 98215
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"

Item#: 87623
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"

Item#: 62238
Push-to-Connect Connector, Polyoxymethlene, 3/8 x 1/4

Push-to-Connect Connector, Polyoxymethlene, 3/8 x 1/4"

Item#: 1593571
Pipe Adapter Brass 1/4-18 x 3/8-18, Pipe Adapter, Brass, 1/4-18 x 3/8-18, Male NPT x Female NPT, 1200PSI

Pipe Adapter Brass 3/8-18 x 1/2-14

Item#: 5281
Forged Body Ball Valve Brass 2 x 2

Forged Body Ball Valve Brass 3/4 x 3/4"

Item#: 63137
Pipe Bushing Brass 1/2-14 x 1/8-27, Pipe Bushing, Brass, 1/2-14 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Bushing Brass 1/4-18 x 1/8-27

Item#: 5282
DOT Swivel Elbow Male 90° Brass 3/8 x 1/2-14, DOT Air Brake Push to Connect Swivel Elbow, 90°, Male, Brass, 3/8 x 1/2-14

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18

Item#: 27205
DOT Elbow Male Nylon 3/8 x 1/4-18, DOT Air Brake Push to Connect Elbow, Male, Nylon, 3/8 x 1/4-18, Tube x Pipe

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797
Miniature Clamp SS 7/32 to 5/8

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 16mm x 1/2

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x M5

Item#: 17896
Nylon Hose Guard 0.91

Nylon Hose Guard 1.81" ID x 25' Length

Item#: 96564
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87622
Waterproof Work Aqua Light 66 LED, Waterproof Aqua Light, 66 LED, Blue, 18-7/8

Waterproof Work Aqua Light 66 LED

Item#: DY80000105
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980
PTO Pin Lock 3/8 x 2-1/2

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 86803
Configuration Straight Female Connector
Tube Size 1/4 "
Thread Size 1/8 "
Thread Style NPT
Material Nickel-Plated Brass/PBT Resin
Wrench Size 13 mm
Thread Length .37 "
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.08 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
