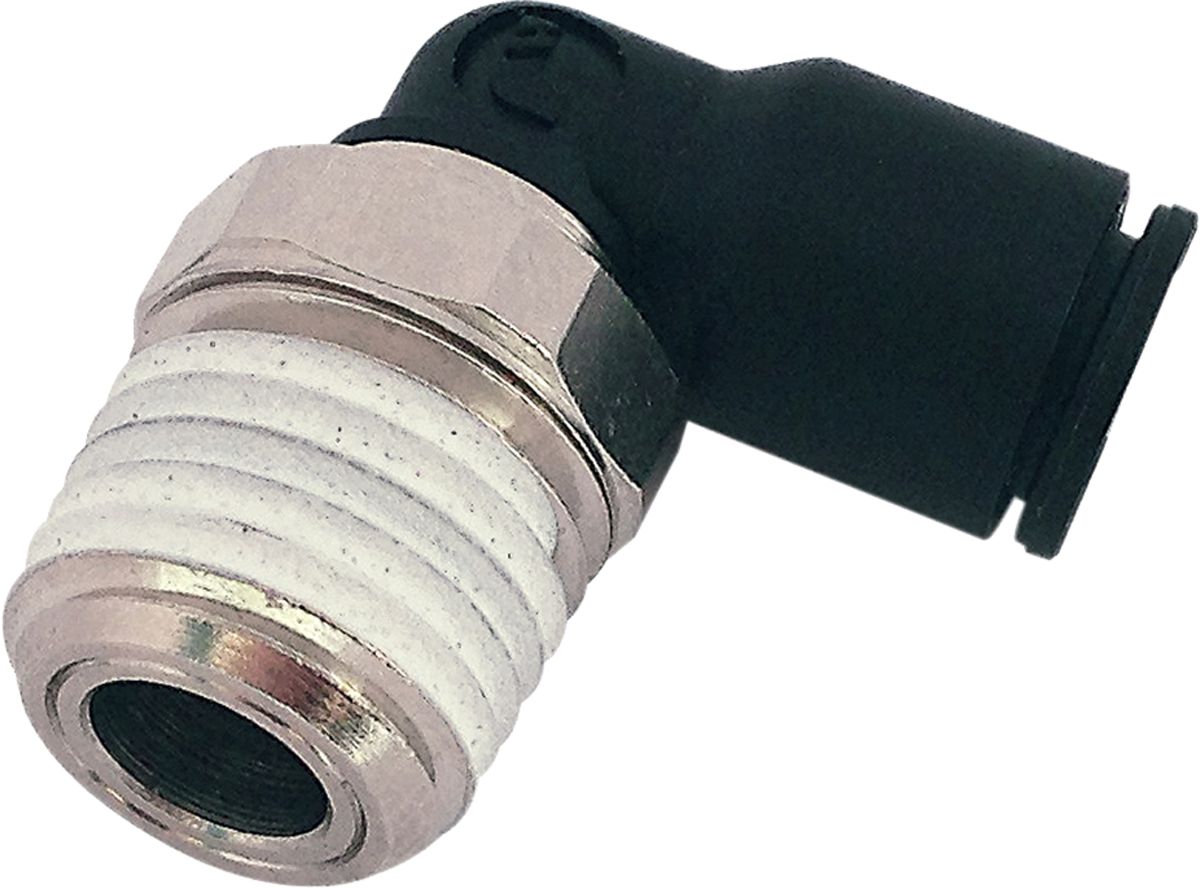

LF3000 Push-to-Connect Elbow, Nylon Body, Nickel Plated Brass Base, 3/8 x 1/4", Tube x Male NPT, 290PSI
(Pack of
3)
SKU:86762 Item#: 86762
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)

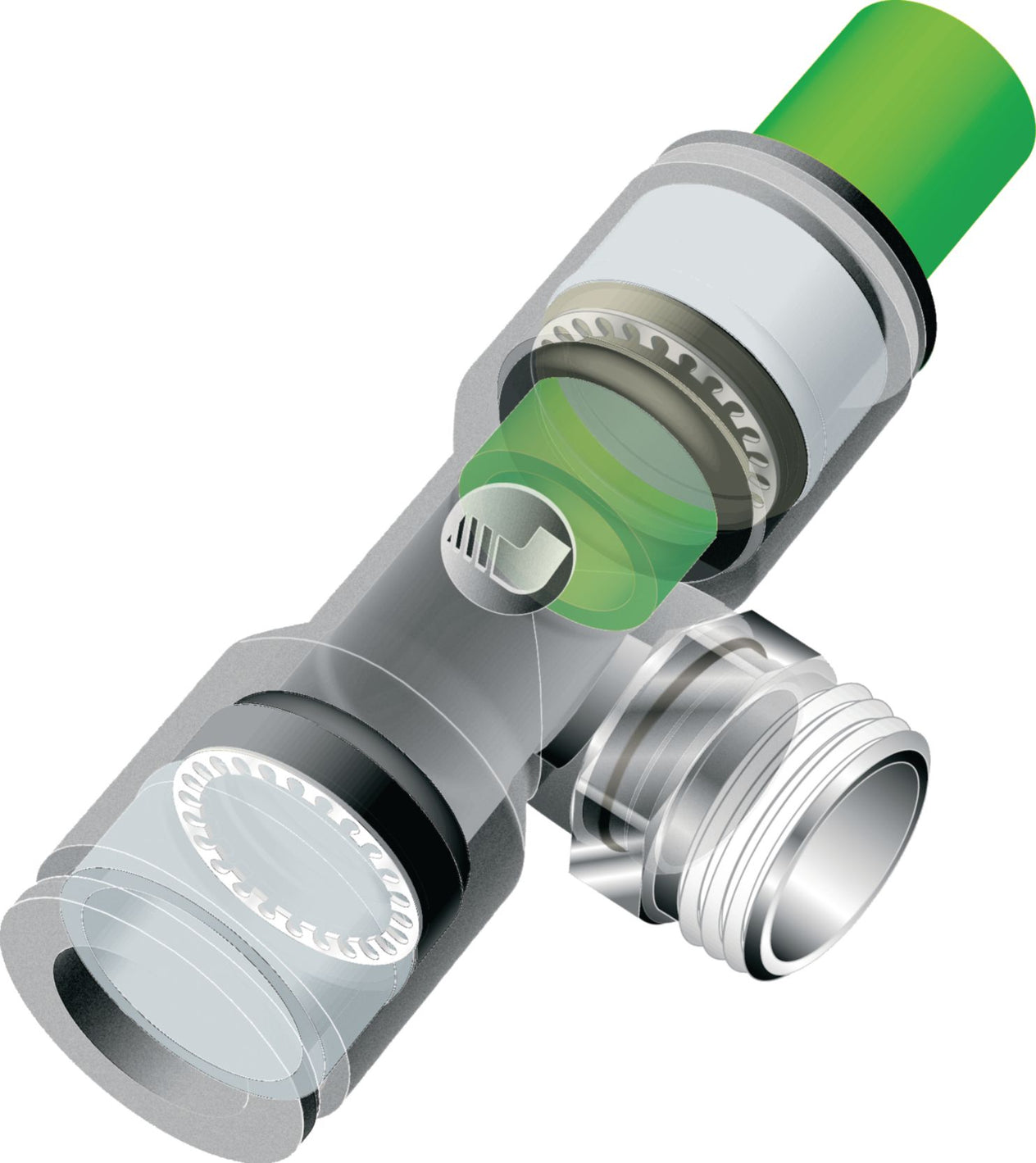

• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-30
Frequently Bought Together
Forged Body Ball Valve Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/8"
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 6 x 6 x 6mm
Couldn't load pickup availability
Push-to-Connect Connector Brass 12mm x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/8 x 1/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86762 |
|---|---|
| Style | LF3000 |
| Configuration | Male Elbow |
| Tube Size | 3/8 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Wrench Size | 15 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
