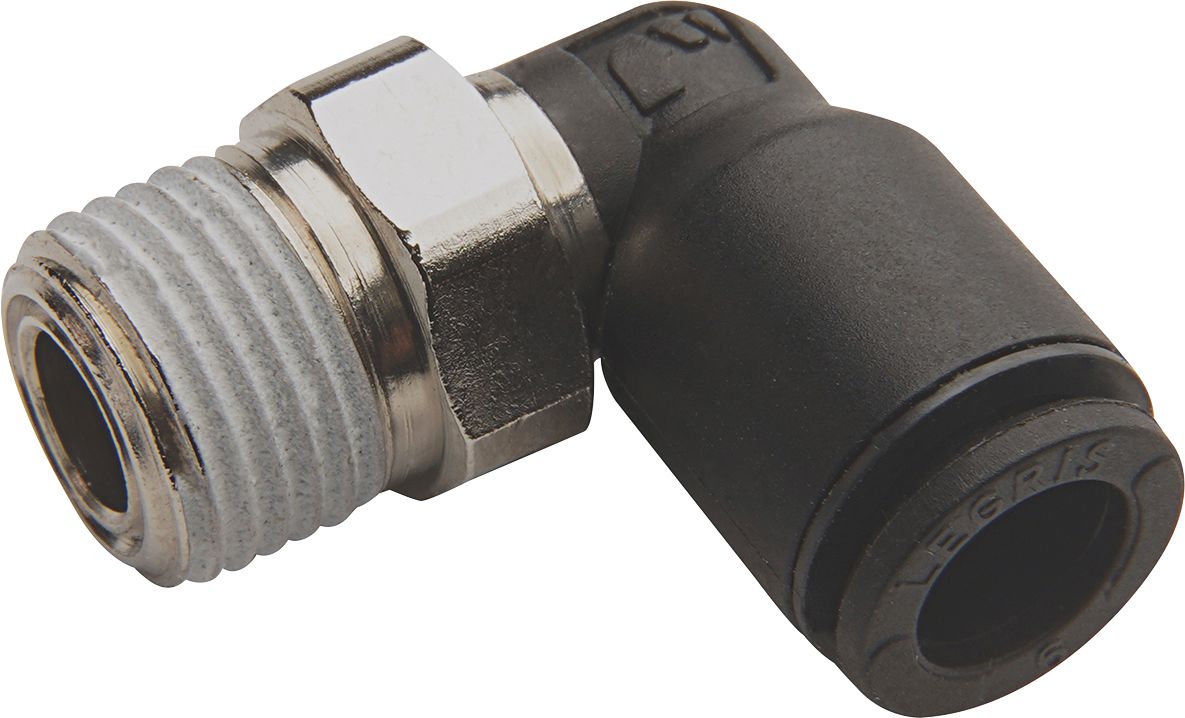

Push-To-Connect Fitting, LF3000, Male Elbow, 6mm Tube x 1/8 NPT
(Pack of
10.0)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Pipe Nipple Steel Black 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Elbow Malleable Iron 90° 1-11-1/2 x 1-11-1/2
Couldn't load pickup availability
Hex Head Plug Brass 3/4-14 Male NPT
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Grease Gun Thin Nose Hydraulic Coupler 1/8"
Couldn't load pickup availability
1025Y10 00
Couldn't load pickup availability
1094P08 00
Couldn't load pickup availability

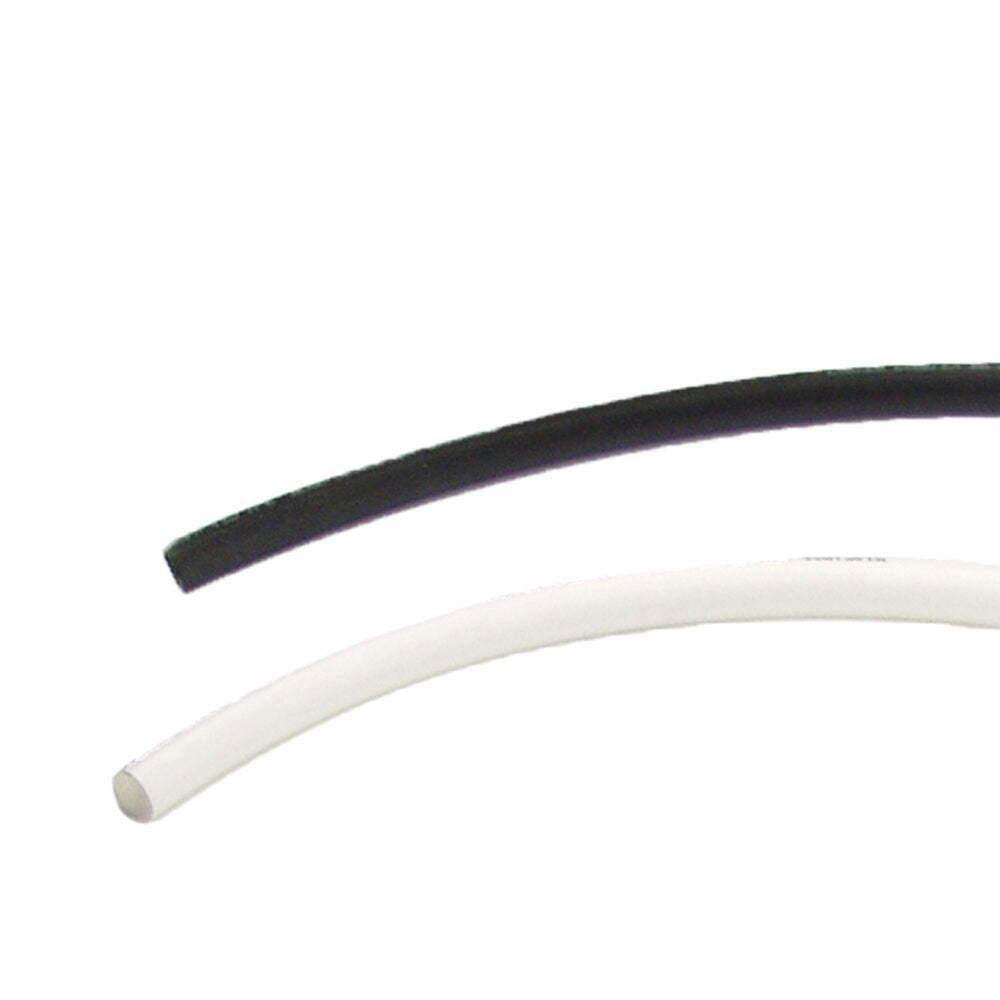

Polyethylene Tubing 5/16" OD x 100' Black
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 1593482 |
|---|---|
| Style | LF3000 |
| Configuration | Male Elbow |
| Tube Size | 6 mm |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Wrench Size | 11 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.165 lb |
