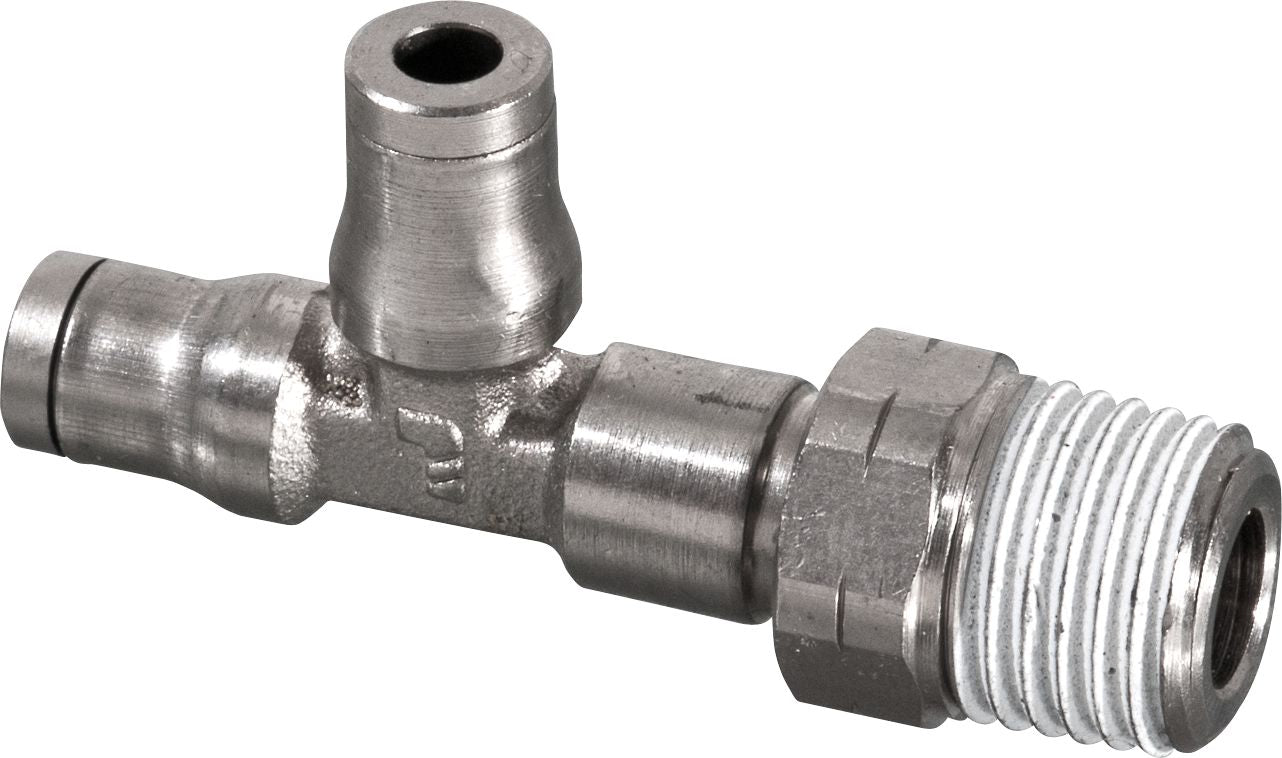

Push-to-Connect Run Tee, Brass, Nickel Plated, 5/32 x 5/32 x 1/4", Tube x Tube x Male NPT, 7 to 290PSI
(Pack of
3)
SKU:28305 Item#: 28305
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-36
Frequently Bought Together
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
Couldn't load pickup availability
Nylon Hose Guard 1.06" ID x 25' Length
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28305 |
|---|---|
| Manufacturer Model #: | 3603 04 14 |
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Male Run Tee |
| Tube Size | 5/32 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Thread Length | 0.43 " |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | 5 to 180 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
