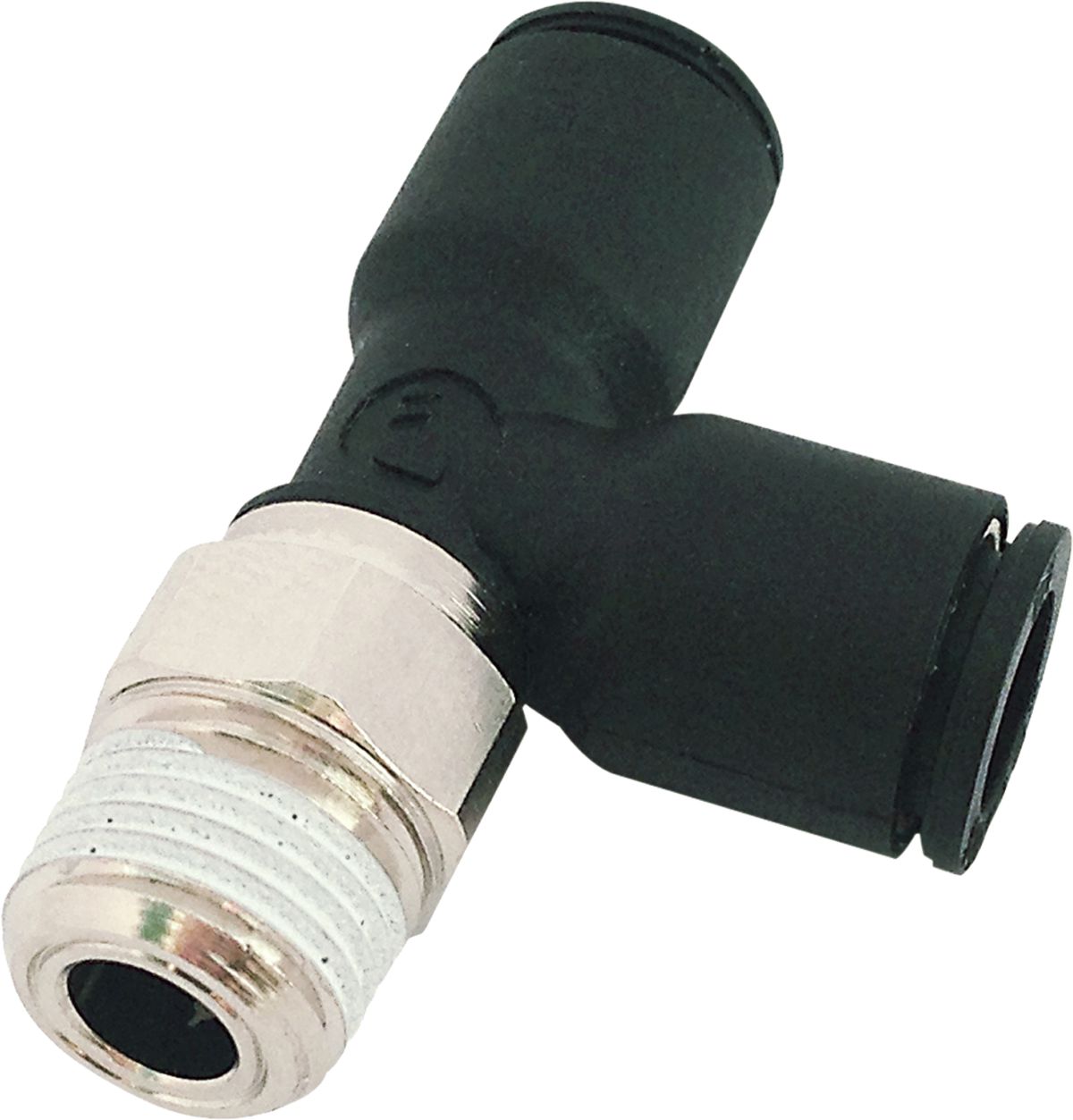

Push-to-Connect Run Tee Nylon 5/32 x 1/8 x 1/8"
(Pack of
3.0)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 9-32
Frequently Bought Together
Hex Bushing Steel 1/2-14 x 1/4-18
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Nipple Steel Black 1/4-18 x 1/4-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
1096Y56 01
Couldn't load pickup availability
1094P62 00
Couldn't load pickup availability
1025Y10 00
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 86773 |
|---|---|
| Style | LF3000 |
| Configuration | Male Run Tee |
| Tube Size | 5/32" (4mm) |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Wrench Size | 11 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
