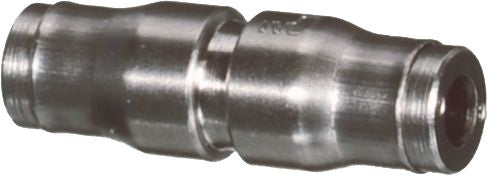

Push-to-Connect Straight Union, Brass, Nickel Plated, 1/4 x 1/4", Tube x Tube, 7 to 290PSI
(Pack of
5)
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.
• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction: – Body: Electroless nickel-plated brass– Backup washer: Electroless nickel-plated brass– Collet technology: Electroless nickel-plated brass– O-ring: Nitrile– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-36
Frequently Bought Together
Pipe Nipple Steel Black 1/4-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 1/8-27 Male NPT
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Super 77 Hose Clamp SS 5/8 to 1-1/4"
Couldn't load pickup availability
Push-to-Connect Connector Brass 6mm x M5
Couldn't load pickup availability
Push-to-Connect Union Elbow Nylon 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector Brass 12mm x 3/8"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Product Description
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction: – Body: Electroless nickel-plated brass– Backup washer: Electroless nickel-plated brass– Collet technology: Electroless nickel-plated brass– O-ring: Nitrile– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28326 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Straight Union |
| Tube Size | 1/4 " |
| Material | Nickel-Plated Brass |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | 5 to 180 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.22 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
