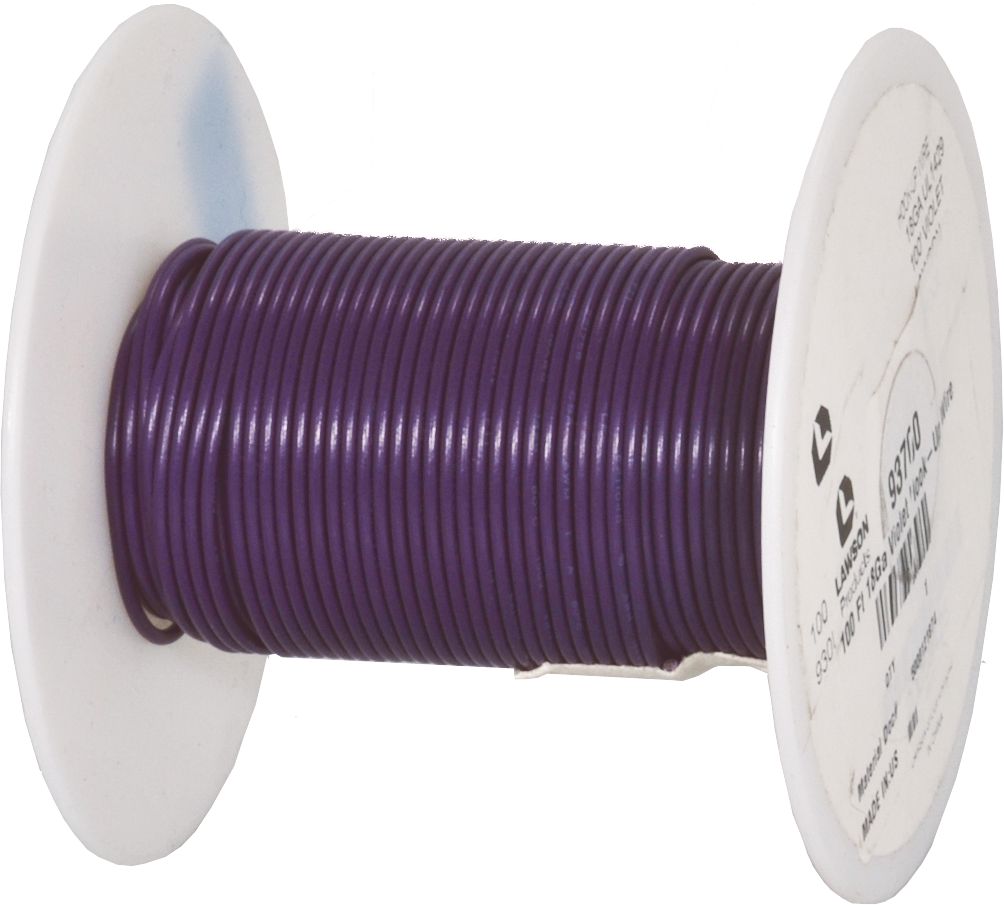

PVC Hook Up Wire 20 AWG 100' Violet
(Pack of
1.0)
• Tinned, stranded copper conductors
• Insulation is made of polyvinyl chloride which has been cross-linked by an irradiation process – this makes it extremely resistant to heat, burn-through and abrasion for greater reliability
• 100 feet per roll
• Use in appliances, business machines, computer wiring, controls and instrumentation
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-6
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Black
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Red
Couldn't load pickup availability
PVC Hook Up Wire 18 AWG 100' White
Couldn't load pickup availability
PVC Hook Up Wire 20 AWG 100' Green
Couldn't load pickup availability
PVC Hook Up Wire 10 AWG 100' Brown
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
• Tinned, stranded copper conductors• Insulation is made of polyvinyl chloride which has been cross-linked by an irradiation process – this makes it extremely resistant to heat, burn-through and abrasion for greater reliability
• 100 feet per roll
• Use in appliances, business machines, computer wiring, controls and instrumentation
Technical Specifications
| Item#: | 93699 |
|---|---|
| Style | Irrradiated PVC Hook-Up Wire |
| Wire Gauge | 20 AWG |
| Nominal O.D. | 0.058 " |
| Color | Violet |
| Length | 100 ft |
| Package Type | 1 Roll |
| Approvals | MIL-W-16878/1 Type B, UL AWM, CSA Style 1429, XLPV |
| Type | Wire |
| UNSPSC #: | 26121539 |
| TAA Compliant: | No |
| Weight: | 0.54 lb |
