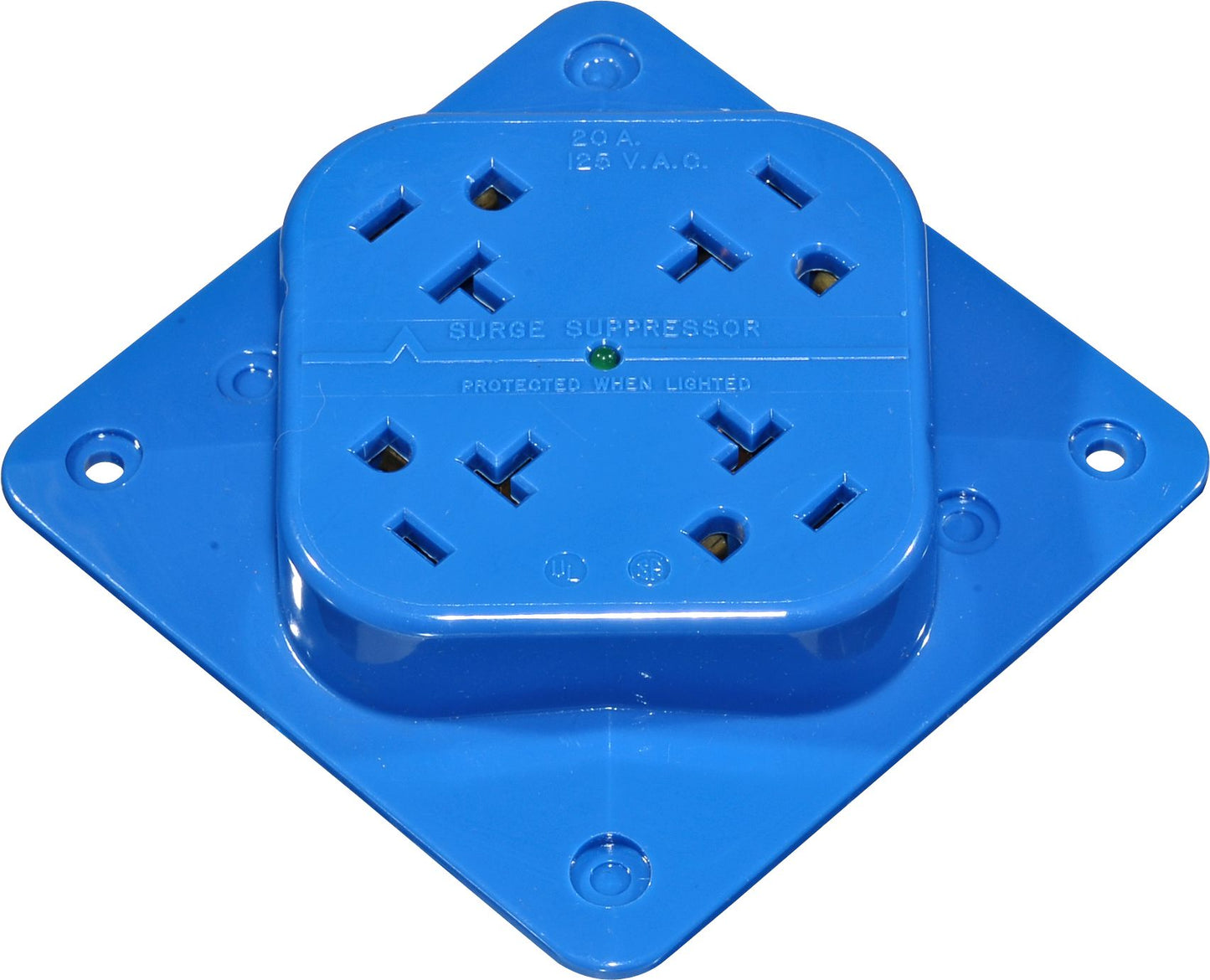

Quad Receptacle with Surge Protection Blue
(Pack of
1)
• Unique face design accepts up to four straight or molded angle plugs
• Rugged Lexan® construction
• Easily removable knockouts for mounting to octagonal concrete ring or box
• “A” and “B” circuits molded into face for easy identification
• Heavy-duty, triple-wipe, high-performance brass line contacts for excellent retention and conductivity
• Heavy-duty, double-wipe, high-performance brass grounding contacts assure safe, reliable grounding
• All four outlets internally connected
• Easily accessible break-off tabs for split-circuit wiring
• Large No. 8 combination Robertson head terminal screws for ease of wiring; binding screw terminals accept up to 12 Ga. solid or stranded wire
• Converts regular duplex outlets to four-receptacle outlets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Cable Tie 13.38" Black
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Industrial Duty Locking Connector 20A 125V
Couldn't load pickup availability
Locking Plug 2-Pole 3-Wire 15A 125V
Couldn't load pickup availability
Locking Receptacle 15A 125V
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Rocker Switch DPDT 25A 12VDC
Couldn't load pickup availability
Sealed Toggle Switch DPDT 10A 125V
Couldn't load pickup availability
Rocker Switch SPST 25A 12VDC Off-On
Couldn't load pickup availability
Product Description
• Unique face design accepts up to four straight or molded angle plugs• Rugged Lexan® construction
• Easily removable knockouts for mounting to octagonal concrete ring or box
• “A” and “B” circuits molded into face for easy identification
• Heavy-duty, triple-wipe, high-performance brass line contacts for excellent retention and conductivity
• Heavy-duty, double-wipe, high-performance brass grounding contacts assure safe, reliable grounding
• All four outlets internally connected
• Easily accessible break-off tabs for split-circuit wiring
• Large No. 8 combination Robertson head terminal screws for ease of wiring; binding screw terminals accept up to 12 Ga. solid or stranded wire
• Converts regular duplex outlets to four-receptacle outlets
Technical Specifications
| Item#: | 95721 |
|---|---|
| Style | QUAD Receptacles |
| Description | 20A-125V Surge Suppression |
| Color | Blue |
| Approvals | UL |
| Type | Receptacles and Accessories |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.46 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
