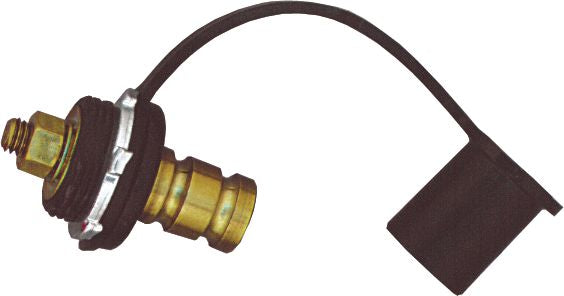

Remote Battery Jumper Terminal, Black, Negative Polarity, Brass, 3/8" Stud Size, 16 TPI
(Pack of
1)
SKU:52824 Item#: 52824
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle

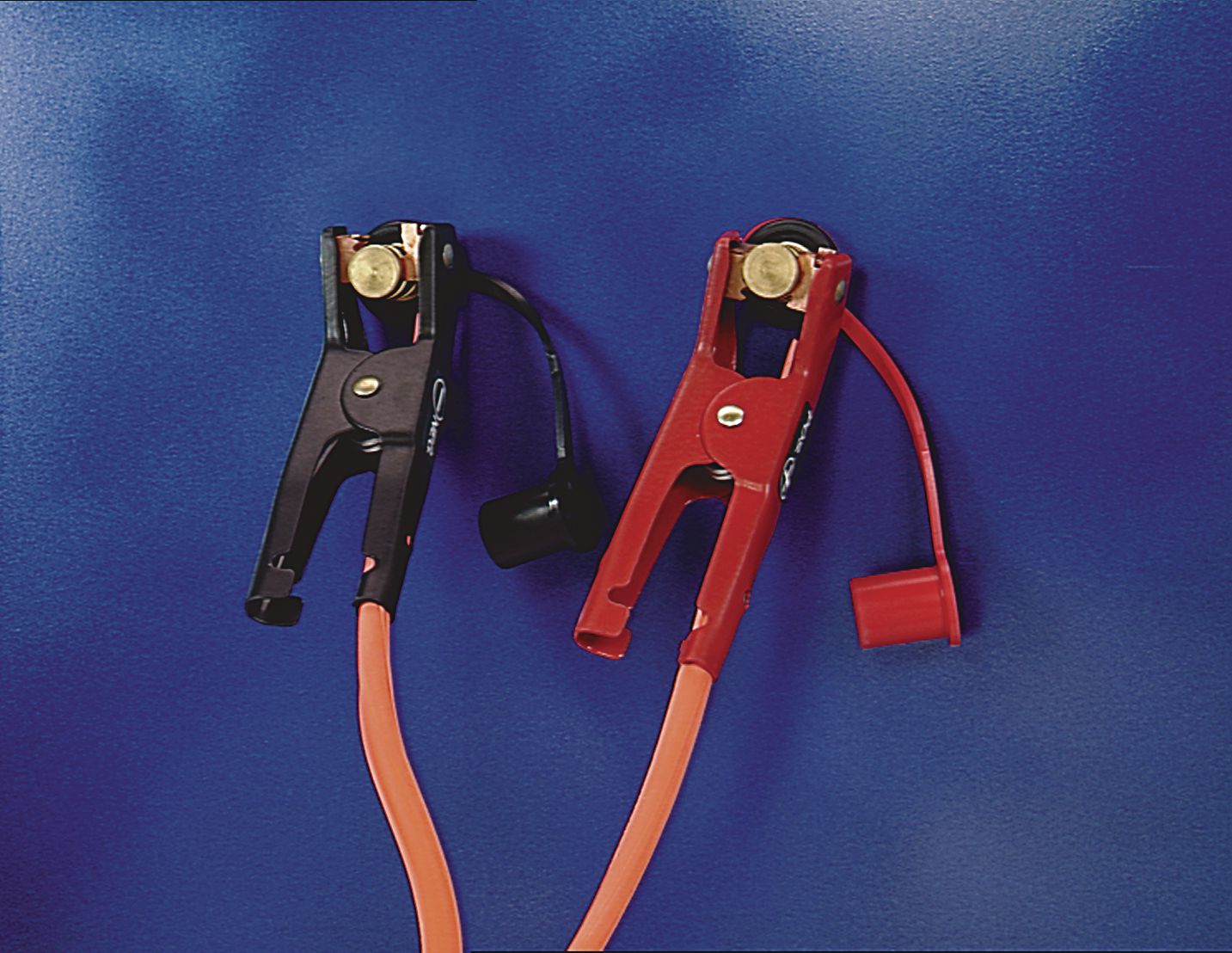

• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-29
Frequently Bought Together
Industrial Battery Connector Protective Cap 350A
Couldn't load pickup availability
Industrial Battery Connector Protective Cap 50A
Couldn't load pickup availability
Battery Terminal and Post Cleaner Red
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Connector Housing 20A 3-Wire Shroud
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 1/4"
Couldn't load pickup availability
DT Series Plug 13A 6 Contacts
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Technical Specifications
| Item#: | 52824 |
|---|---|
| Style | Remote Battery Jumper |
| Type | Terminals |
| Color | Black |
| Polarity | Negative |
| Description | Jumper Terminal - Negative |
| UNSPSC #: | 78181500 |
| TAA Compliant: | Yes |
| Weight: | 0.38 lb |
