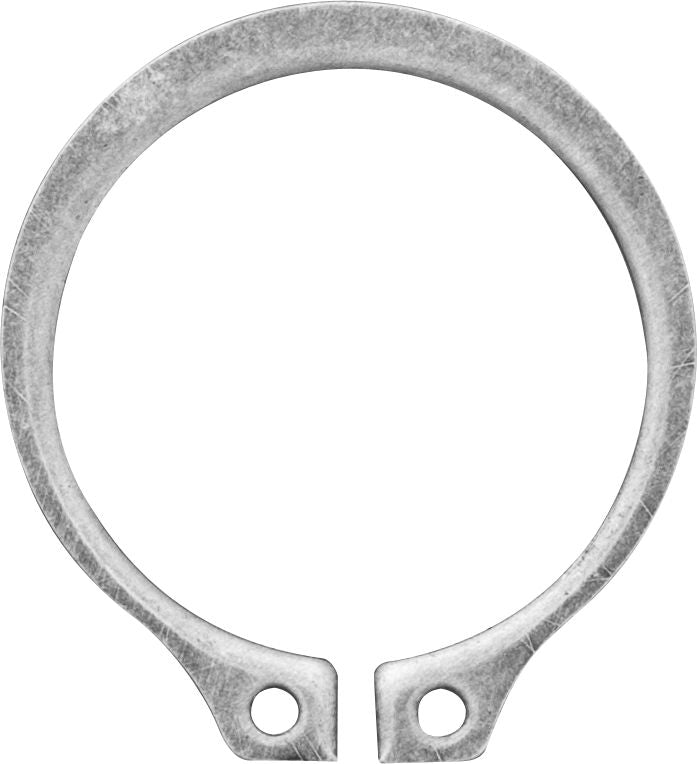

Retaining Ring, External, 18-8 Stainless Steel, Plain Finish, 13/16" Shaft Diameter
(Pack of
5)
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 6-49
Frequently Bought Together
Retaining Ring External Steel 4mm
Couldn't load pickup availability
Retaining Ring External Steel 1-7/16"
Couldn't load pickup availability
Retaining Ring External Steel 1-1/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Retaining Ring External Steel 1-3/8"
Couldn't load pickup availability
Retaining Ring Internal Steel 7/16"
Couldn't load pickup availability
Retaining Ring Assortment External 75Pcs
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 59522 |
|---|---|
| Shaft Diameter | 13/16 " |
| Ring Clearance | 1.15 " |
| Ring Thickness | .042 " |
| Groove Diameter | .762 " |
| Groove Width | .046 " |
| Finish | Plain |
| Type | External Type Retaining Ring |
| Material | Stainless Steel |
| Size | 13/16 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
