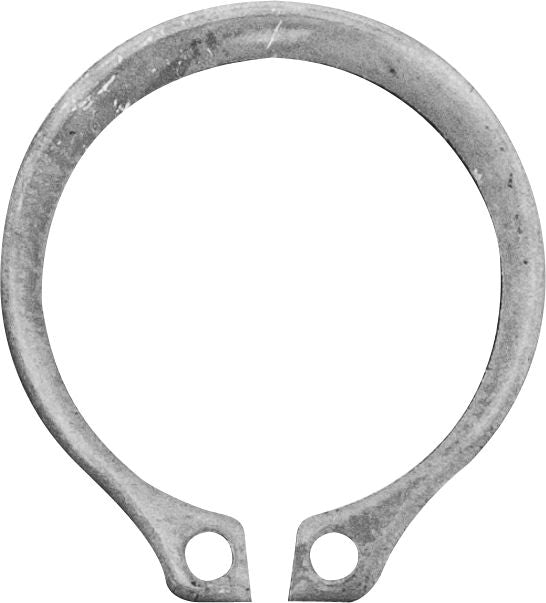

Retaining Ring, External, 18-8 Stainless Steel, Plain Finish, 5/8" Shaft Diameter
(Pack of
5)
SKU:59519 Item#: 59519
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Couldn't load pickup availability
Catalog page#: 6-49
Frequently Bought Together
Retaining Ring External 18-8 Stainless Steel 12mm
Couldn't load pickup availability
Retaining Ring External 18-8 Stainless Steel 3/8"
Couldn't load pickup availability
Retaining Ring External Steel 15mm
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
Retaining Ring External Steel 1-1/2"
Couldn't load pickup availability
Retaining Ring External Steel 5/16"
Couldn't load pickup availability
Retaining Ring External Steel 1-1/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 59519 |
|---|---|
| Shaft Diameter | 5/8 " |
| Ring Clearance | .90 " |
| Ring Thickness | .035 " |
| Groove Diameter | .588 " |
| Groove Width | .039 " |
| Finish | Plain |
| Type | External Type Retaining Ring |
| Material | Stainless Steel |
| Size | 5/8 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
