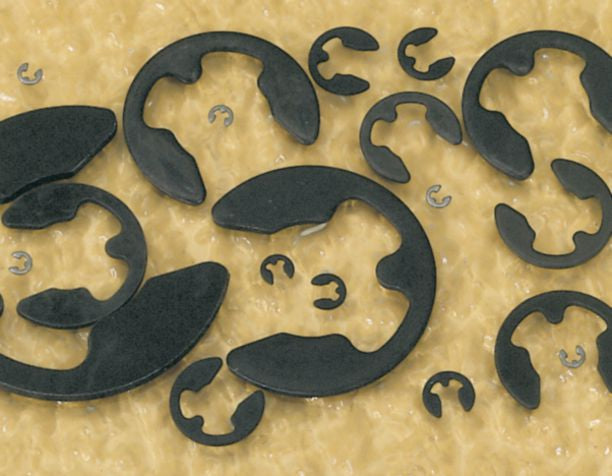

Retaining Ring, External E-Type, Steel, Black Phosphate Finish, 3/4" Shaft Diameter
(Pack of
25)
SKU:11246 Item#: 11246
• Applicable where it is impossible to axially apply an external ring
• Can be used for varying shaft diameters
• May be easily applied and removed with a screwdriver or other simple tool
Couldn't load pickup availability
Frequently Bought Together
Retaining Ring External E-Type Steel 1.7mm
Item#: 97029
Couldn't load pickup availability
Retaining Ring External E-Type Steel 2.75mm
Item#: 97031
Couldn't load pickup availability
Retaining Ring External Bowed E-Type Steel 25/32"
Item#: 11363
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Item#: 87508
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Item#: FA68404
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Item#: FA68401
Couldn't load pickup availability
Retaining Ring External E-Type Steel 5/16"
Item#: 11335
Couldn't load pickup availability
Retaining Ring External Bowed E-Type 1/2"
Item#: 11374
Couldn't load pickup availability
Retaining Ring External Steel 7/8"
Item#: 11233
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Item#: DY89310522
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Item#: 87511
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Product Description
• Applicable where it is impossible to axially apply an external ring• Can be used for varying shaft diameters
• May be easily applied and removed with a screwdriver or other simple tool
Technical Specifications
| Item#: | 11246 |
|---|---|
| Shaft Diameter | 3/4 " |
| Ring Clearance | 1.000 " |
| Ring Thickness | .050 " |
| Groove Diameter | .625 " |
| Groove Width | .056 " |
| Finish | Black Phosphate |
| Type | E Type Retaining Ring |
| Material | Carbon Steel |
| Size | 3/4 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
