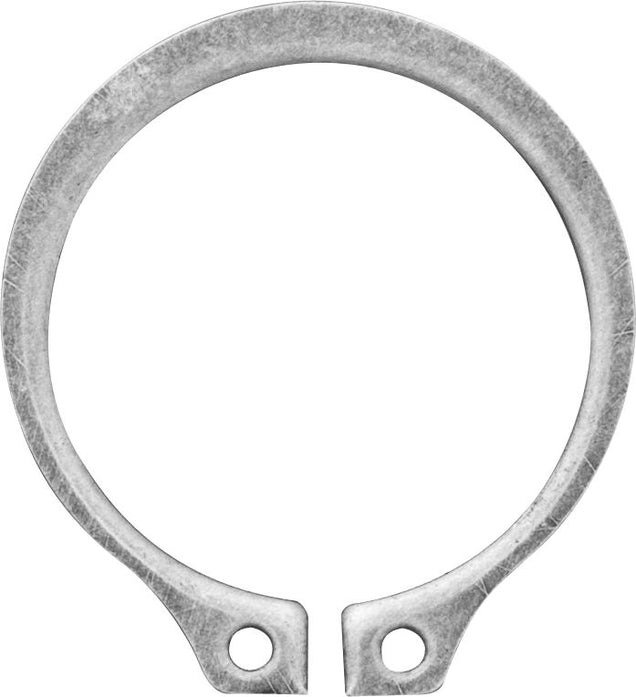

Retaining Ring External Steel 2-1/2"
(Pack of
10.0)
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Retaining Ring External Steel 2-1/4"
Couldn't load pickup availability
Retaining Ring External Steel 29mm
Couldn't load pickup availability
Retaining Ring External Steel 1/8"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 3/8-16
Couldn't load pickup availability
Retaining Ring External E-Type 18-8 SS 8mm
Couldn't load pickup availability
Retaining Ring External Steel 4mm
Couldn't load pickup availability
Retaining Ring External Steel 1-7/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
3310 LED Glow Light 3x AA 6.14" Green/Glow
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
Technical Specifications
| Item#: | 92584 |
|---|---|
| Shaft Diameter | 2-1/2 " |
| Ring Clearance | 3.12 " |
| Ring Thickness | .078 " |
| Groove Diameter | 2.360 " |
| Groove Width | .086 " |
| Finish | Black Phosphate |
| Type | External Type Retaining Ring |
| Material | Carbon Steel |
| Size | 2-1/2 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
