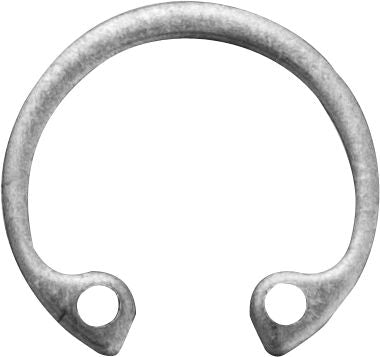

Retaining Ring Internal 18-8 Stainless Steel 7/16"
(Pack of
5.0)
• Replaces pins, washers, threaded sections, collars and machine shoulders
• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
NOTE: See actual size Internal Type Retaining Ring illustrations.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 6-46
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
Retaining Ring Internal Steel 2-3/4"
Couldn't load pickup availability
Retaining Ring Internal Steel 1-3/16"
Couldn't load pickup availability
Retaining Ring Internal Steel 20mm
Couldn't load pickup availability
Retaining Ring External E-Type 18-8 SS 8mm
Couldn't load pickup availability
Retaining Ring External Steel 4mm
Couldn't load pickup availability
Retaining Ring External Steel 1-7/16"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Replaces pins, washers, threaded sections, collars and machine shoulders• Manufactured from SAE 1065-1090 high carbon spring steel
• Heat-treated and oil-dipped
• Conforms to NAS 669 and 670 and MS 16624 through MS 1116634 specifications
• Maximum operating temperature: 480°F (249°C)
Retaining RingsRetaining rings are precision-engineered components placed on shafts or in bores, which provide a shoulder that accurately positions, locates or retains other parts of an assembly. They save time and labor, and decrease maintenance costs. Our rigid quality-control program provides you with the finest rings on the market today.
NOTE: See actual size Internal Type Retaining Ring illustrations.
Technical Specifications
| Item#: | 59503 |
|---|---|
| Shaft Diameter | 7/16 " |
| Ring Clearance | .23 " |
| Ring Thickness | .025 " |
| Groove Diameter | .461 " |
| Groove Width | .029 " |
| Finish | Plain |
| Type | Internal Type Retaining Ring |
| Material | Stainless Steel |
| Size | 7/16 " |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
