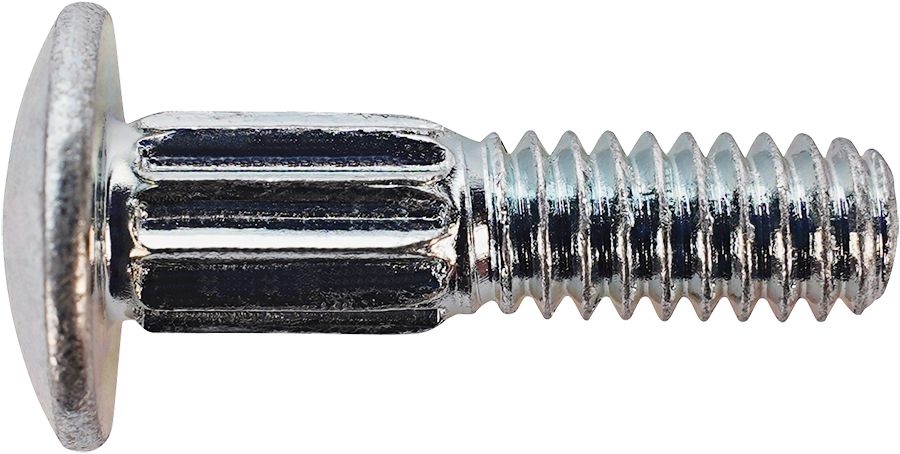

Ribbed Neck Bolt, Round Head, Grade 5, Steel, Zinc Finish, Coarse Thread, 13/32" Rib Length, 3/8-16 x 1"
(Pack of
50)
SKU:97582 Item#: 97582
• Rib length: For bolts 1" long – 13/32"; For bolts longer than 1" – 19/32"
• Diameter over ribs: 1/4" bolt size – 0.274"; 5/16" bolt size – 0.340"; 3/8" bolt size – 0.405"
• Longitudinal ribs around the shank grip the material and resist spinning of the bolt
• Standard thread length = (2 x Diameter) + 1/4" (not all sizes are threaded to the ribs)
• Zinc-plated

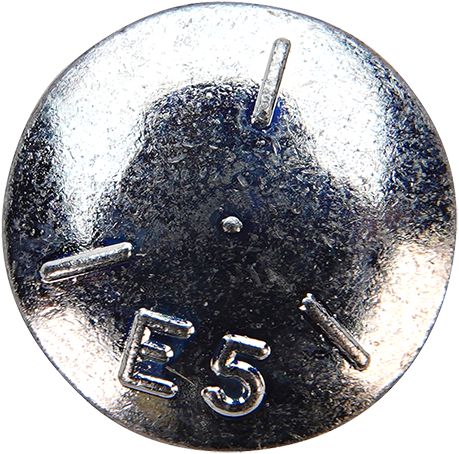

• Meets the following specifications: Mechanical – SAE J429-GR5 (120,000 PSI tensile strength); Dimensional – ANSI B18.5
• Excellent for maintenance applications where it is not possible to make a square hole to accommodate a regular carriage bolt
Couldn't load pickup availability
Catalog page#: 3-64
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Carriage Bolt 18-8 SS 1/4-20 x 1-1/4"
Couldn't load pickup availability
Carriage Bolt Grade 5 Steel 5/16-18 x 1"
Couldn't load pickup availability
Carriage Bolt 18-8 SS 1/4-20 x 3/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Product Description
• Rib length: For bolts 1" long – 13/32"; For bolts longer than 1" – 19/32"• Diameter over ribs: 1/4" bolt size – 0.274"; 5/16" bolt size – 0.340"; 3/8" bolt size – 0.405"
• Longitudinal ribs around the shank grip the material and resist spinning of the bolt
• Standard thread length = (2 x Diameter) + 1/4" (not all sizes are threaded to the ribs)
• Zinc-plated
• Meets the following specifications: Mechanical – SAE J429-GR5 (120,000 PSI tensile strength); Dimensional – ANSI B18.5
• Excellent for maintenance applications where it is not possible to make a square hole to accommodate a regular carriage bolt
Technical Specifications
| Item#: | 97582 |
|---|---|
| Type | Carriage Bolt |
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Thread | Coarse |
| Length | 1 " |
| Grade | 5 |
| Finish | Bright Zinc |
| Head Style | Round |
| Material | Carbon Steel |
| Thread Length | Full |
| Thread Form | UNR |
| Size | 3/8-16X1 " |
| Neck Style | Ribbed |
| Rib Length | 13/32 " |
| Rib Diameter | 0.405 " |
| UNSPSC #: | 31161603 |
| TAA Compliant: | Yes |
| Weight: | 2.3 lb |
