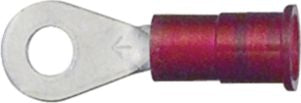

Ring Tongue Terminal 22 to 18 AWG Red
(Pack of
25.0)
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.
The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Couldn't load pickup availability
Catalog Page#: 17-19
Frequently Bought Together
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Technical Specifications
| Item#: | 25453 |
|---|---|
| Type | Crimp |
| Wire Gauge | 22-18 AWG |
| Stud Size | 6 |
| Color | Red |
| Approvals | UL, CSA |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.08 lb |
