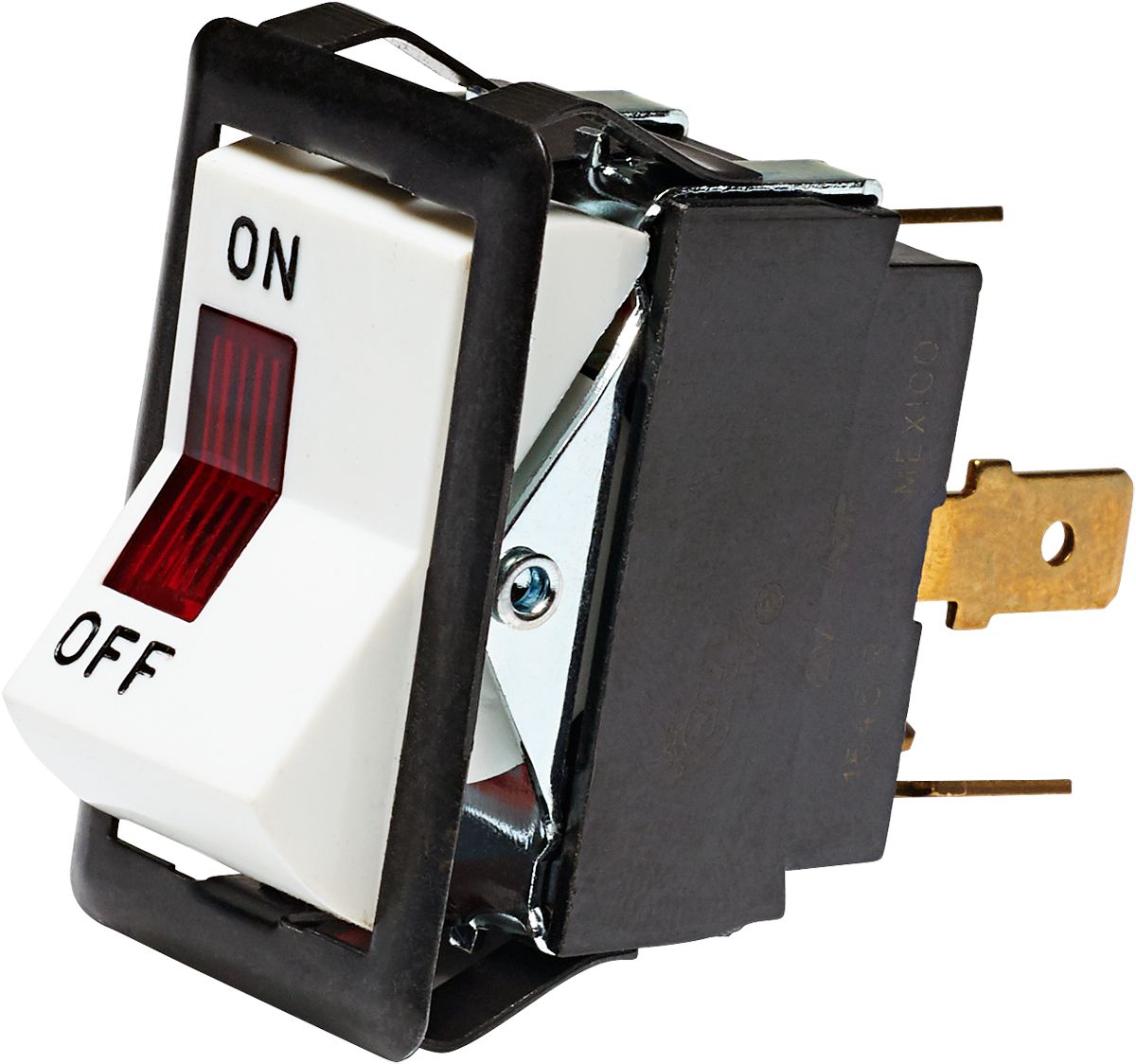

Rocker Switch, Double Pole Single Throw, 25 Amps, 12 Volts DC, 4 Blade Terminal, On-Off
(Pack of
2)
SKU:84480 Item#: 84480
• Snap-in mounting fits panels 0.04" to 0.1" thick
• Panel hole size 0.83" x 1.45" (21.08mm x 36.83mm)
Couldn't load pickup availability
Catalog page#: 17-126
Frequently Bought Together
Ring Tongue Terminal 16 to 14 AWG Clear #10 Stud
Item#: 1495166
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Item#: 25262
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Item#: A530
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Pushbutton Switch SPST 125/250VAC Momentary On
Item#: 90373
Couldn't load pickup availability
Universal Toggle Switch DPDT 20A 125V On-On
Item#: 84474
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Item#: 87222
Couldn't load pickup availability
Product Description
• Snap-in mounting fits panels 0.04" to 0.1" thick• Panel hole size 0.83" x 1.45" (21.08mm x 36.83mm)
Technical Specifications
| Item#: | 84480 |
|---|---|
| Style | Rocker Switches |
| Pole | Double |
| Throw | Single |
| Terminal Connection | 4 Blades |
| Switch Positions | On - Off |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 25A at 12V DC |
| Panel Hole Diameter | 0.83 x 1.45 " |
| Actuator Color | White with Red Pilot Light |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | No |
| Weight: | 0.14 lb |
