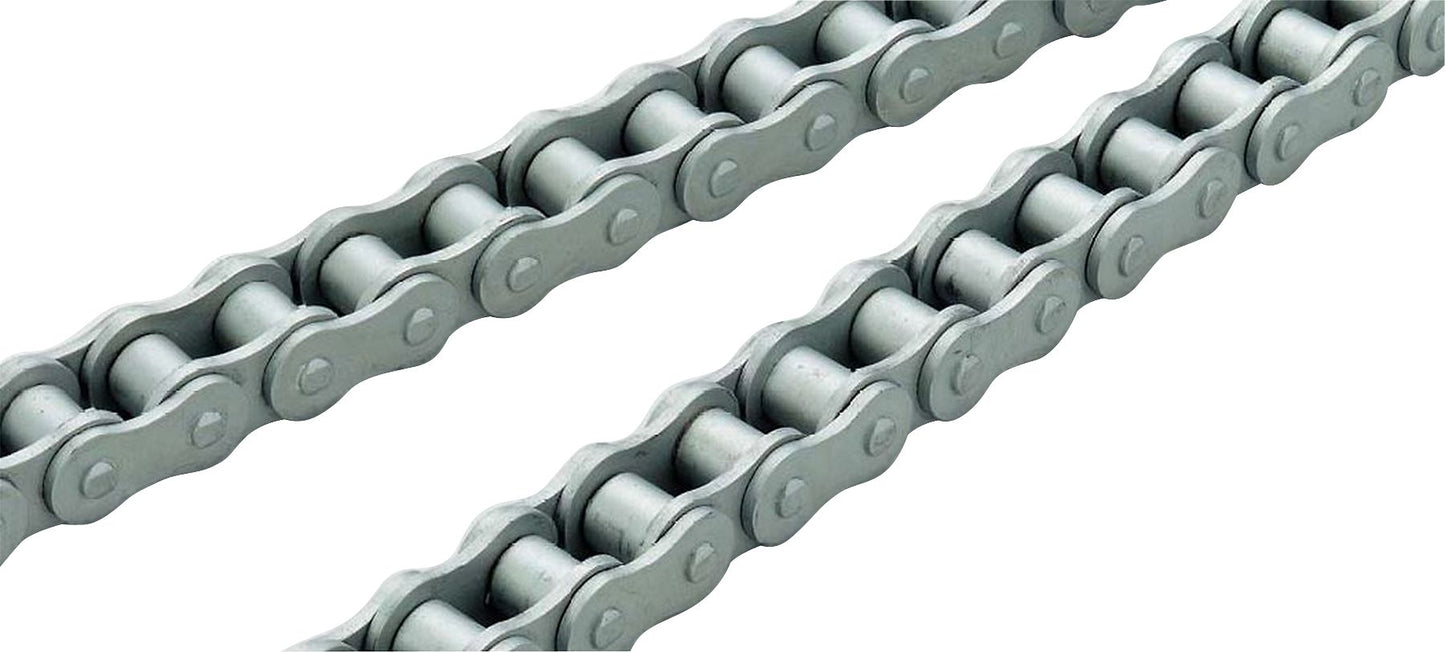

Roller Chain, Single Strand, Hi-Guard, Steel, Zinc Plated, Industry No. 35, 3/8" Pitch, 2,310 lbs Average Tensile Strength
(Pack of
10)
SKU:1443583 Item#: 1443583
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.
Product Description
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.Technical Specifications
| Item#: | 1443583 |
|---|---|
| Manufacturer Model #: | RC35R-E |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Zinc Plate |
| Industry Number | 35 |
| Pitch | 3/8 " |
| Roller Width | 0.188 " |
| Roller Diameter | 0.200 " |
| Plate Thickness | 0.049 " |
| Plate Height | 0.354 " |
| Length | 10 ft |
| Average Tensile Strength | 2,310 lb |
| Maximum Load | 484 lb |
| UNSPSC #: | 31151603 |
| TAA Compliant: | Yes |
