Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 60
(Pack of
10.0)

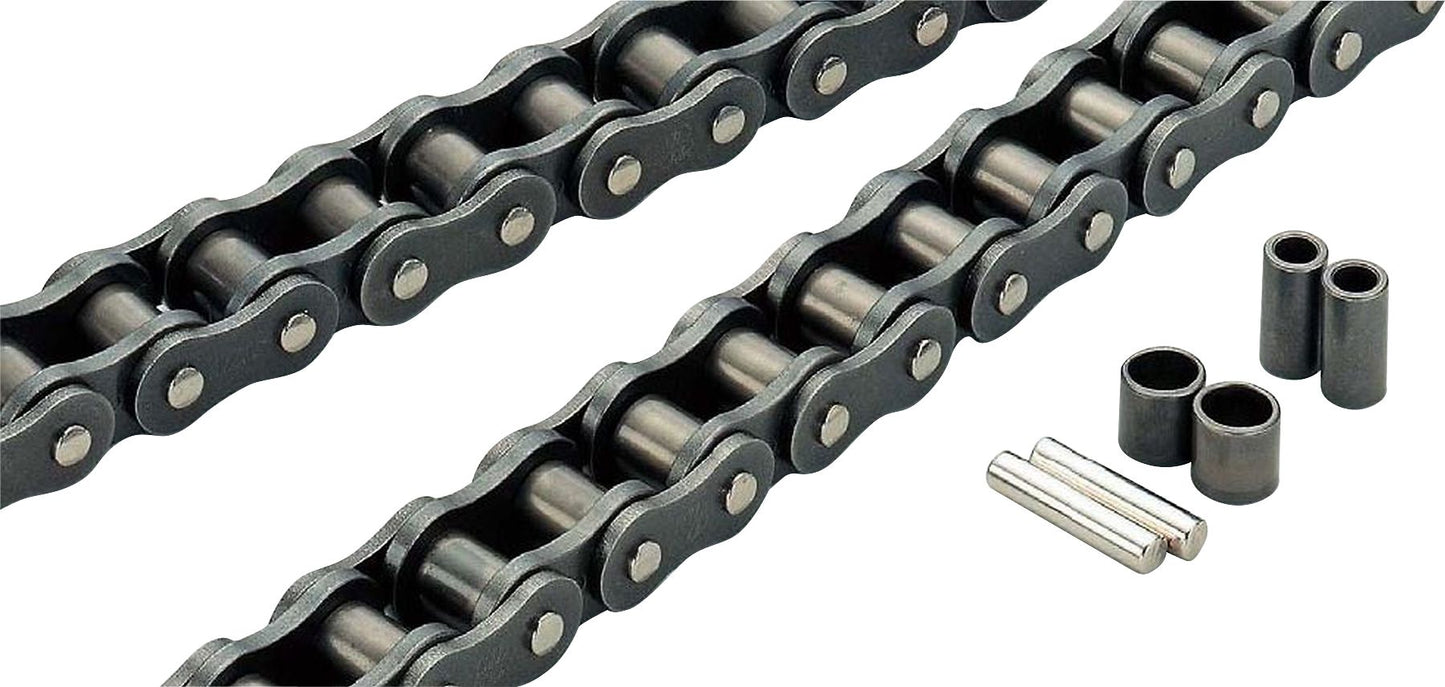

Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-60
Frequently Bought Together
Roller Chain, Single Strand, O-Ring, Steel, Industry No. 80
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Industry No. C2050
Couldn't load pickup availability
Webmaster® 1600 Web Sling, Polyester, Yellow, 12' Length
Couldn't load pickup availability
Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 40
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Nickel Plated, Industry No
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443432 |
|---|---|
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 60 |
| Pitch | 3/4 " |
| Roller Width | 0.500 " |
| Roller Diameter | 0.469 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.713 " |
| Length | 10 ft |
| Average Tensile Strength | 9,460 lb |
| Maximum Load | 2,090 lb |
| UNSPSC #: | 31151603 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
